CARTEK Gear Indicator (OBD2)

Buy online at SHOPEE / N1 Racing Team (credit card or installment plan available).

The Gear Indicator (OBD2) will work on a wide range of cars equipped with an OBD2 Port. To check your car is compatible make sure your OBD port works of one of these OBD2 Protocols:

SAE J1850-PWM
SAE J1939
ISO 9141
ISO 14230
ISO 15765-4

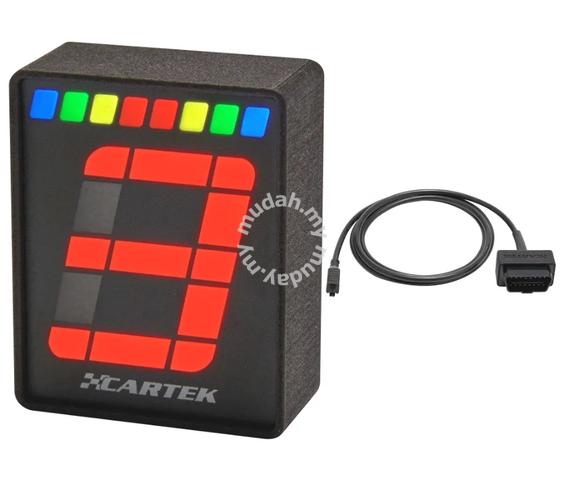

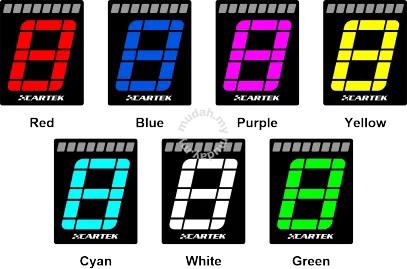

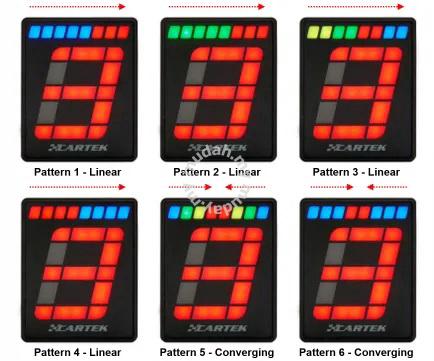

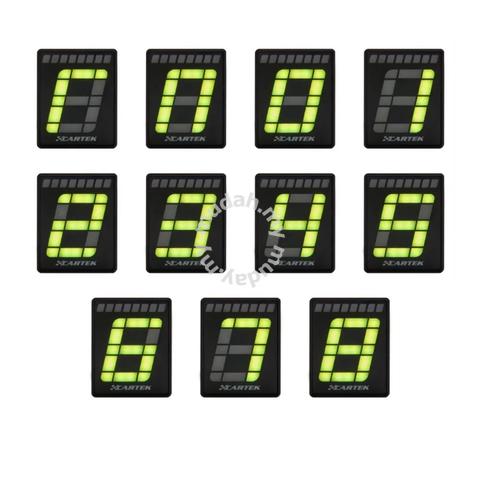

The GEAR INDICATOR from CARTEK is a dashboard mounted device that is designed to indicate to a driver the current selected transmission gear but also incorporates a sequential shift-light display which can indicate to a driver the optimum time to shift up a gear. The selected gear is indicated by a large, multi-coloured, 7 segment numerical display while the shift-light function is displayed at the upper part of the unit by 8 multi-coloured LEDs. These 8 LEDs form a display sequence that will commence at an engine speed prior to optimum and complete at precisely the optimum speed thereby giving the driver early indication to shift up before the rev limiter is reached or engine damage occurs.

This version of the Gear Indicator can be plugged directly into the OBD2 port of the majority of vehicles fitted with this type of connector. It is supplied with a dedicated 1.5 meter OBD2 cable and connector so no additional wiring is necessary.

The Gear Indicator OBD2 determines the selected gear by calculating the ratio between Engine Speed and Road Speed (Ratiometric method).

On power up the Gear Indicator OBD2 will search for the correct OBD2 protocol. When the engine is switched off, the Gear Indicator OBD2 will enter sleep mode to minimise battery consumption.
