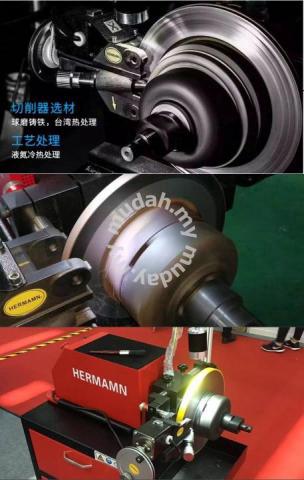

German Disc Lathe Machine Skim Disc Mesin Mechanic

Feature:
1. Brake Disc Lathe:
- Maximum brake disc thickness: 42mm
- Maximum brake disc diameter: 380mm
- Adjustment knob accuracy: 0.005mm
- Cutting accuracy: ≤0.02mm
- Feed rate: 8.5mm/min
- Power requirements: 220V/50Hz /1Ph
- Net weight: 7.3kg

2. Drive Unit: -
- Working height: 380 - 1,200mm
- Drive speed: 120rpm
- Decelerate motor voltage: 220V/50Hz/1Ph
- Decelerate motor power: 400W
- Ambient temperature range: -20°C to 40°C
- Turning accuracy: ≤ 0.005mm
- Brake disc runout: ≤ 0.005mm
- Brake disc thickness variation: 0.005 – 0.01mm
- Brake disc surface roughness: Ra 1.5 – 2.0um
- Weight: 120kg
