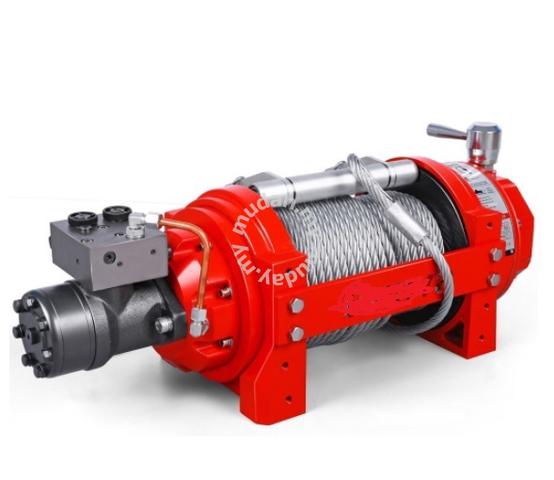

10000LBS 15000LBS Hydraulic Winch 4x4 Offroad

List-ID: 9613965822 May 12:53
Carousel Image Selected
  • Carousel Image
  • Carousel Image
  • Carousel Image
  • Carousel Image
  • Carousel Image
  • Description

  • Specification

  • call for best price

    Features :
    - 10000lbs / 15000lbs Line Pull Capacity
    - Full Hydraulic Winch
    - Heavy Duty Commercial Grade
    - Meets European EN Standards
    - IP67 Ingress Protected
    - Fast Line Speed
    - Cable Tensioner Fitted

    Specifications :
    - Rated Line Pull : 10000LBS ( 4536kgs ) / 15000LBS ( 6804kgs )
    - Motor Displacement : 100ml/r (10000LBS) / 160ml/r (15000LBS)
    - Oil Flow : 5 - 60L/min
    - Pressure : 15MPa (10000LBS) / 16MPa (15000LBS)
    - Gear : Full Steel 2-Stage Planetary
    - Gear Ratio : 17.6:1 (10000LBS) / 17.3:1 (15000LBS)
    - Clutch : Stainless Steel Rotary Clutch
    - Braking Action : Automatic Load Holding Hydraulic Disc
    - Wire Rope : Ø10.2mm×25.5m (10000LBS) / Ø12mm×26.5m (15000LBS)
    - Drum Size : Ø102mm×253mm (10000LBS) / Ø127mm×266mm (15000LBS)

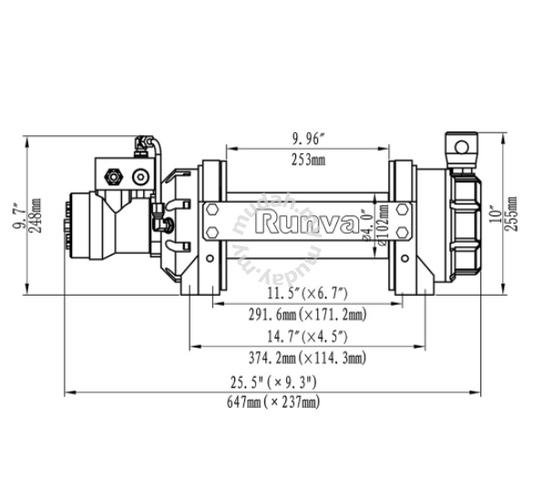

    - Dimensions :
    647mm x 237mm x 248mm ( 25.5" x 9.3" x 9.7" ) (10000LBS)
    735mm x 300mm x 277mm ( 28.9" x 11.8" x 10.9" ) (15000LBS)
    - Net Weight :
    51 kg ( 112.4 lbs )
    83.6 kg ( 184.3 lbs )
    - Battery : 1000CCA Minimum for winching
    - Mounting Bolt Pattern :
    374.2mm×114.3mm ; 291.6mm×171.2mm (8x M10 Bolts) (10000LBS)
    303.5mm×114.3mm ; 368.5mm×171.2mm (8x M12 Bolts) (15000LBS)

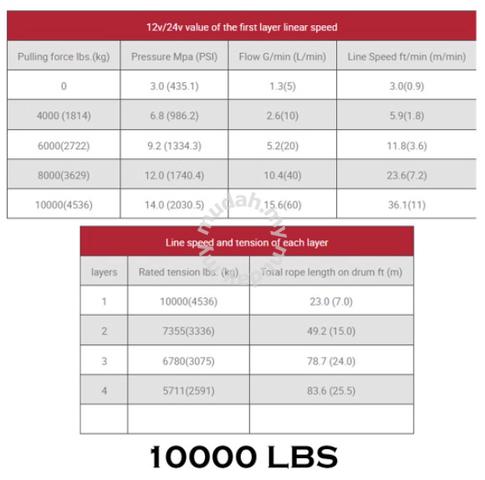

    10000LBS :
    Line Speed and Motor Current ( First Layer )

    Line Pull ( LBS / KG ) = Line Speed FPM ( MPM ) ; Pressure MPa (PSI) ; Flow G/min (L/min)

    0 = 3.0ft ( 0.9m ) ; 3.0MPa ( 435.1PSI ) ; 1.3(5)
    4000 ( 1816 ) = 5.9ft ( 1.8m ) ; 6.8MPa ( 986.2PSI ) ; 2.6 (10L)
    6000 ( 2722 ) = 11.8ft ( 3.6m ) ; 9.2MPa ( 1334.3PSI ) ; 5.2 (20L)
    8000 ( 3629 ) = 23.6ft ( 7.2m ) ; 12.0MPa ( 1740.4PSI ) ; 10.4 (40L)
    10000 ( 4536 ) = 36.1ft ( 11m ) ; 14.0MPa ( 2030.5PSI ) ; 15.6 (60L)

    Line Pull and Cable Capacity

    Layer of Cable = Rated Line Pull ( LBS / KG ) ; Cable Capacity ( FT / M )

    1 = 10000 ( 4536 ) ; 23.0 ( 7.0 )
    2 = 7355 ( 3336 ) ; 49.2 ( 15.0 )
    3 = 6780 ( 3075 ) ; 78.7 ( 24.0 )
    4 = 5711 ( 2591 ) ; 83.6 ( 25.5 )
