tire changer

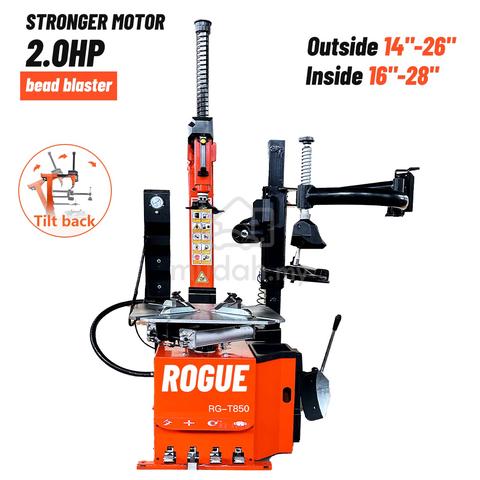

Pneumatic Tilt-Back Column
Efficiency meets convenience. With a simple foot-pedal control, the entire vertical column tilts back to provide maximum clearance for loading and unloading tires. It returns to the exact same position for the next wheel, saving you time on every set and increasing your daily throughput.

Right-Tower Pneumatic Assist Arm
Get the mechanical advantage you need. The right-side assist arm provides steady down-force to keep the bead in the drop center during mounting. This prevents rim damage and takes the physical struggle out of servicing stiff run-flats and low-profile performance tires.

Integrated High-Pressure Bead Seater

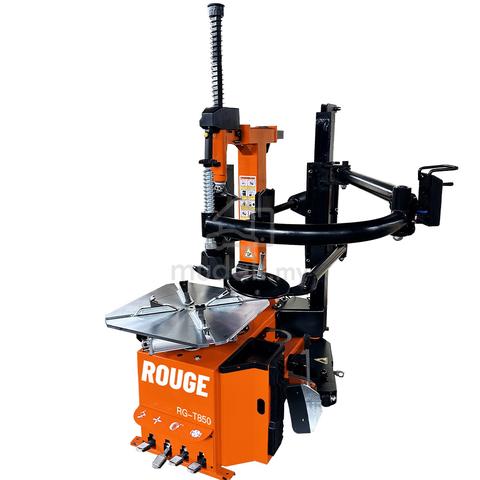

Stop fighting with stubborn tires. The RG-T850 features a built-in bead seating system that fires a powerful burst of air through the clamping jaws. This instant pressure seats the bead safely and quickly, allowing for fast inflation without needing external tools.

12" - 24" Clamping Range
Versatility for the modern bay. The heavy-duty four-jaw chuck offers a secure 12 to 24-inch clamping range. Whether you are servicing a standard sedan or a light truck, the self-centering jaws provide a rock-solid grip every time.

Heavy-Duty "Real Steel" Construction
We build the RG-T850 for the long haul. Featuring a reinforced chassis to eliminate flexing, high-grade stainless steel cylinders, and a maintenance-free gearbox, this machine is engineered to survive the daily rigors of a high-volume tire shop.
Special points Technical parameters
Outer rim 12”－26”（304mm-660mm}
Inner rim 14”－28”（355mm-711mm）
Maximum tire diameter 45”（1143mm）
Maximum tire width 14”（355mm）
Pressing force (10bar) 2500kg（5500lbs）
Operating air pressure 116－145psi
Maximum charge pressure 50psi
Outline dimension 45”×35”×39”（1130*890*990mm）
Net weight 265kg（564lbs）
Working state noise ＜70dB (A)
