Acson 1.0HP A3WMY10S Inverter Aircond

New unit.

Deposit + Cash on Delivery
Delivery charge applicable
Self collect pick up add RM20

without installation.

Aircond, Air Cond, Air Conditioner. 1.0 HP 1 HP 1HP

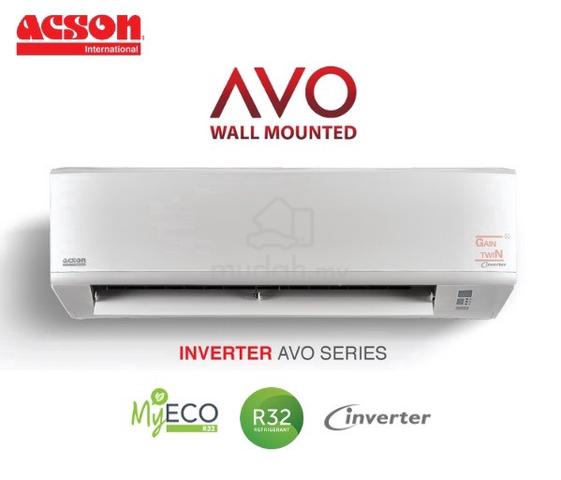

ACSON AVO WALL MOUNTED air conditioner is a perfect combination of ideal greenery
refrigerant and sophisticated design. It is revolutionized air conditioner that incorporated with
R32 refrigerant and Acson innovation cooling technology.
With its eco-friendly characteristics, Acson AVO wall mounted air conditioner serves as an
extraordinary cooling companion by reducing its footprint to the environment, preserving a
green environment for next generation.

R32 REFRIGERANT
Greenery Refrigerant

R32 is a single component refrigerant and used to be
one of the components of R410A (binary blend of HFC).
It is remarkable for its low environmental impact. The
R32 refrigerant has a low Global Warming Potential
(GWP), which one-third lower as compared to R410A
and consists of zero Ozone Depletion Potential (ODP)
at the same time.
In other words, it does not contribute to ozone depletion
and helps to preserve global climate changes.

Inverter Technology
As to provide an exceptional cooling comfort, Acson Inverter varies the compressor speed accordingly as to achieve precise and constant temperature for a higher level of comfort.
Acson Inverter utilizes hermatic swing compressor. Its precise structure and mechanical movement reduce the friction and vibration as compared to conventional rotary compressor.

With the advance of inverter technology system, it has reduced leakage of refrigerant and thus maximum capacity is achieved.

Energy Savings
Acson Inverter air-conditioner varies the compressor speed by adjusting the power supply frequency and maintain the temperature without cutting ON and OFF the compressor. Optimum control of compressor operation results in eliminating excessive electricity consumption. It allows to operate at low capacity most of the time, which leads to save energy up to 48%*.

*Amount of energy saving is subjected to individual operating and /or environment conditions

Powerful
Acson Inverter air-conditioner operates at maximum capacity once it started. The burst of increased power enable it to reach the set temperature and ideal cooling comfort more quickly as compared with non-inverter air-conditioner.

Comfortable
Inverter system adjusts the capacity smartly according to the air conditioning load. It minimize the difference between the set temperature and room temperature. Temperature remain constant and thus providing highest comfort levels for you, which is ideal for comfy bedroom.

Ultimate Fast Cooling
Incorporated with sophisticated algorithm, the compressor starts up powerful cooling cycle and speed up to maximun frequency when user turn on the unit. The strong and powerful airflow triggered out Ultimate Fast Cooling and achieve the desired temperature 35% faster in time compared to usual inverter unit.

Features

Advanced Fan Motor
Incorporated with Silicon Control Rectifier (SCR) fan motor, Acson air-conditioner provides a stepless change in speed, resulting in smoother air throw and quieter fan speed transition.

Long & Wide Air-flow
Long airflow distributes the cool air gently and evenly across the room. The reach of comforting air is up to 6 metres away from the unit.

Turbo Mode
Acson air-conditioner which incorporated with TURBO mode enables the compressor fan to operate at its maximum fan speed for 20 minutes and enables the desired temperature to be achieved faster in 33%.

Time Schedule
With timer feature, user can now schedule to ON/ OFF the air-conditioner within a 24-hour period according to their preference, by using the wireless remote controller.

Silent Atmosphere
(Quiet Mode)
QUIET MODE lowers the noise level by changing the frequency and fan speed of the unit. When serenity and tranquility state is desired, it will bring down the sound level to an unobstructive 21dBA. This function is perfectly convenient during the night.

Comfort at Your Fingertip
(Sleep Mode)
Turn on the SLEEP function before you go to bed for intelligent control to adjust the temperature gradually. This will ensure a comfortable and mellow sleeping

Double Protection
Automatic Restart
In the event of a sudden power failure, the unit can be automatically restarted once the power supply is back to normal and keeping the last setting condition.
Self Diagnosis System
With a series of sensors and intelligent control board, errors will be detected and blinking LEDs to show the error which rarely happen.

Peace of Mind
Warranty Service
Acson products are designed with durable & reliable quality. Our units are come with 5 years warranty for compressor and 1 year warranty for general parts.

*1st year free labour and compressor.
*2nd - 5th year free compressor only

Specifications
A3WM Non-Inverter AVO Series (R32)

Horse Power (HP) 1.0 HP
Model
Indoor A3WMY 10S
Outdoor A3LCY 10F
Nominal Cooling Capacity
BTU/h 9,500 (4,400-10,200)
kW 2.78 (1.30-3.00)
Nominal Total Input Power W 765 (300-1,130)
Nominal Running Current A 3.44 (1.77-5.02)
EER
BTU/h/W 12.42
W/W 3.64
Power Source V/Ph/Hz 220 - 240V / 1 / 50
Refrigerant Control OUTDOOR EXV
Indoor
Unit
Control
Operation LCD REMOTE CONTROL
Air Discharge AUTOMATIC LOUVER (UP & DOWN)
Air Flow
Turbo l/s (CFM) 178 (378)
High l/s (CFM) 163 (345)
Medium l/s (CFM) 128 (272)
Low l/s (CFM) 101 (215)
Quiet l/s (CFM) 78 (165)
Sound Pressure Level (SPL) dBA 41/40/34/29/21
Unit Dimension
Height mm (in) 288 (11.34)
Width mm (in) 859 (33.82)
Depth mm (in) 209 (8.23)
Packaging Dimension
Height mm (in) 367 (14.45)
Width mm (in) 970 (38.19)
Depth mm (in) 303 (11.93)
Unit Weight
Condensate Drain Size
kg (lb) 9 (19.84)
mm (in) 19.05 (0.75)
Outdoor
Unit
Air Flow l/s (CFM) 425 (900)
Sound Pressure Level (SPL) dBA 45
Unit Dimension
Height mm (in) 550 (21.65)
Width mm (in) 658 (26.00)
Depth mm (in) 273 (10.75)
Packaging Dimension
Height mm (in) 580 (22.83)
Width mm (in) 775 (30.51)
Depth mm (in) 355 (13.98)
Unit Weight kg (lb) 24 (52.91)
Fin Spec BARE ALUMINIUM FIN OR HYDROPHILIC GOLD FIN
Pipe
Connection
Type FLARE VALVE
Size
Liquid mm (in) 6.35 (1/4)
Gas mm (in) 9.52 (3/8)
Maximum Piping Length m 25
Maximum Piping Height m 15
Refrigerant Type R32

1. All specifications are subject to change by the manufacturer without prior notice.
2. Nominal Cooling Capacity is based in the conditions: Cooling 27C DB / 19C WB indoor and 35C DB / 24C WB outdoor.
3. Sound Pressure Level is according to JIS C 9612 standard. Position of the measurement point is 1m in front and 0.8m below the unit.
4. Units are tested & complied to international standards such as ISO 5151


Mr Chou
Show contact number

Barter Corner
Tel : 1700-81-5236
Email : ****@***.***
***
Other Terms & Conditions:
Warranty 1 year internal parts, 5 years compressor
