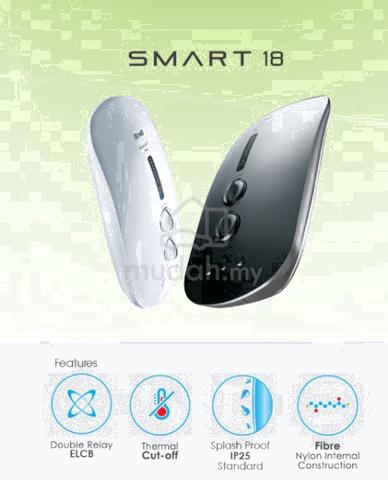

ALPHA Water Heater DC PUMP SMART18IRS IVORY WHITE

=====Features=====
AUTO TEST
-SMART will run a self-test on the internal circuit to check if there is any leakage on all electric components & parts.

LINE FAULT INDICATOR
-To checks your home's wiring status and detects any improper electrical connection.
-It will be alerted with the indicator light changing from green to red.

DOUBLE RELAY ELCB
-In case of electricity surges, both live and neutral current flows will be cut off, ensuring your safety at multiple levels.

SAFETY THERMAL CUT-OFF
-Automatic & Overload Temperature Control System automatically breaks off power supply if the is abnormal rise in shower temperature.

SPLASH PROOF
-The casing is designed to provide protection against water seeping into the heater's internal mechanism.

NYLON FIBRE INTERNAL
-The internal of the heater is build with this strong & durable non-conductive material for futher insulation against electric shock.

DC PUMP
-Powerful water delivery with maximum energy savings, maintenance free usage and true silent operation.

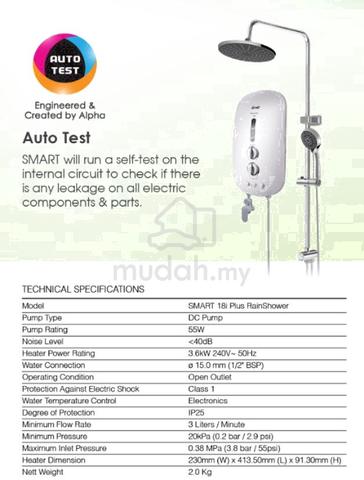

=====Specifications=====
Model SMART 18i Plus RainShower
Pump Type  DC Pump
Pump Rating 55W
Noise Level < 40dB
Heater Power Rating 3.6kW 240V~ 50Hz
Water Connection ø 15.0 mm (1/2" BSP)
Operating Condition Open Outlet
Protection Against Electric Shock Class 1
Water Temperature Control Electronics
Degree of Protection IP25
Minimum Flow Rate 3 Liters / Minute
Minimum Pressure 20kPa (0.2 bar / 2.9 psi)
Maximum Inlet Pressure 0.38 MPa (3.8 bar / 55psi)
Heater Dimension 230mm (W) x 413.50mm (L) x 91.30mm (H)
Nett Weight 2.0 Kg
Colour Ivory white
