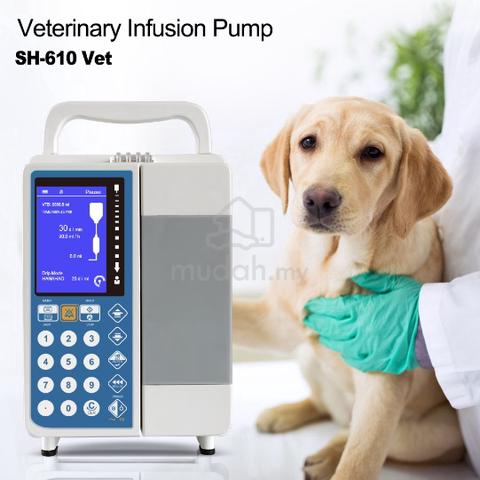

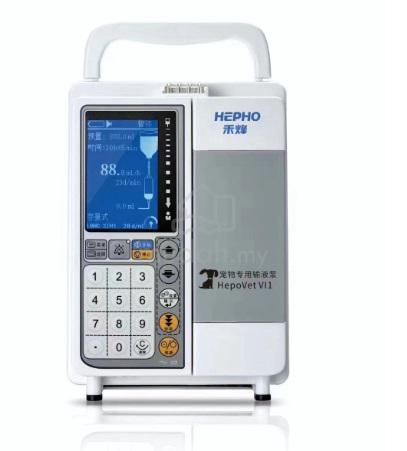

Animal Infusion Pump Pet Use Stand Veterinary Use

This is a Veterinary Infusion Pump is a volumetric infusion pump, it can control the infusion rate and volume featuring in long time, high-accuracy, large range and continuous, and it has fully met the different requirements of modern clinical medical in various occasions.Features in high safety, easy operation and long life. Flow control with high accuracy and comprehensive alarm measures ensure VET animals/cat/dog safety and optimum therapeutic effect.

Application:And now, it has been widely applied in each vein injection in hospitals for clinical nursing, such as ICU, CCU, Veterinary Hospital,Veterinary Clinic，surgery, operating room, emergency room

Intravenous injection.

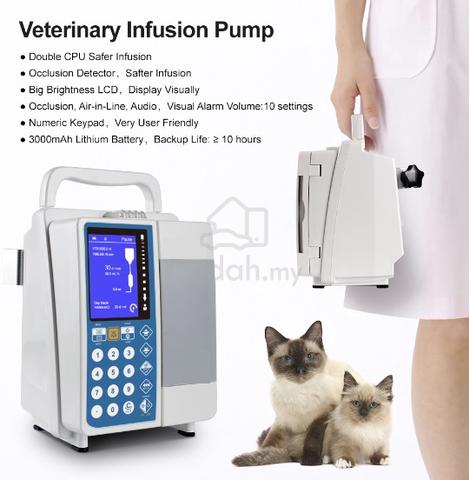

Feature:

● 3.2"" Sharp and Large Display ensures clear view from distance

● Special veterinary design and optimization

● Users friendly interface for easy operation

● Dual CPU to ensure ultimate safety and reliability

● Precise control of the infusion rate and infusion volume

● 4 Different Infusion Modes (Option) meet most clinical needs

● Anti-bolus System to improve infusion safety

● Upto 10 hours long battery life

Technical Specification:

Infusion Mode:Volume Mode、Time Mode、Drug Mode、Bolus Mode

Rate Unit:ml/h、volume/time、d/min

IV Sets:Standard single use IV sets ( 10、15、20、60d/mL, with diameter 3.4 ~ 4.5mm)

Flow Rate:1.0ml/h～1200ml/h；1.0d/min～400d/min

Increment:1.0-99.9ml/h with 0.1ml/h；100-1200ml/h with 1ml/h

Deviation:Flow Rate：≤±5%（after calibration）

VTBI:0.1～9999.9 ml

Total Volume:0～9999.9 ml

Time:1min ～ 99h59min

Purge Rate:600ml/h，displaying purge volume

KVO:0.1ml/h~5.0ml/h， adjustable

Keypad:Numeric Keypad，user friendly

BOLUS:Bolus function available,flow rate adjustable

Night Mode:Night Mode, No operation for 5mins, LCD brightness lower automatically.

Occlusion Pressure:Occlusion pressure detection , 40~ 130KPa ,0～9 levels adjustable.

Detection:dynamic pressure value display.

Air bubble Detection:Ultrasonic detection,≥50μL,Single bubble volume: 50 ~300μl,0～9 levels adjustable.

Volume:0～9 levels adjustable

Motor Anti-reverse Function:Anti-reverse function to prevent upstream

IV Set:Open System. Can accept all kinds of IV Set after calibration

Self-Testing:Self-Testing when start up and during infusing

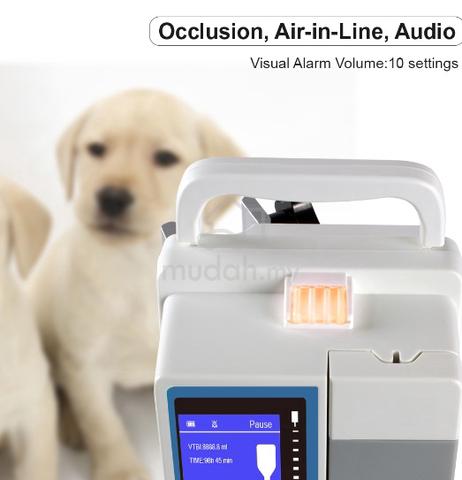

Audio Visual/Alarm Message:

Air bubble, occlusion, door open, infusion finish, standby time expired, battery low,

battery empty, battery disengaged, AC Power disengaged, motor error, pump error, pressure sensor error, parameter error, system abnormal

Screen Power Supply:

3.2’brightness LCD

AC: 100V ~ 240V, 50Hz/60Hz, ≤ 25VA

Battery:Rechargeable Lithium battery: DC11.1V, 3000mAh;operating time: ≥ 10 hours @25ml/h， displaying remaining battery

Dimension:145mm×150mm×200mm
