Anritsu MS2711D Portable RF Spectrum Analyze

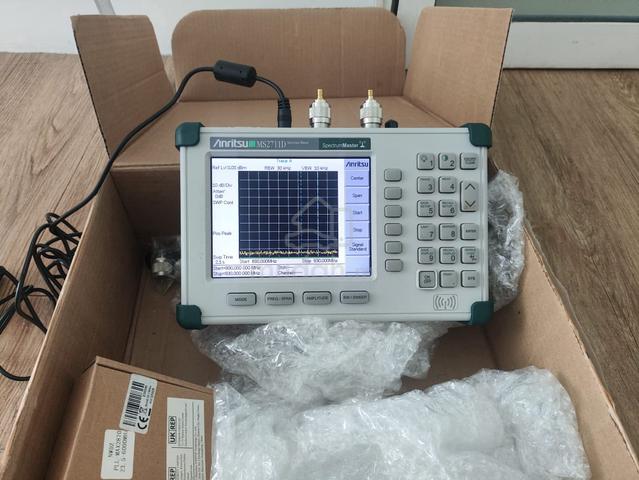

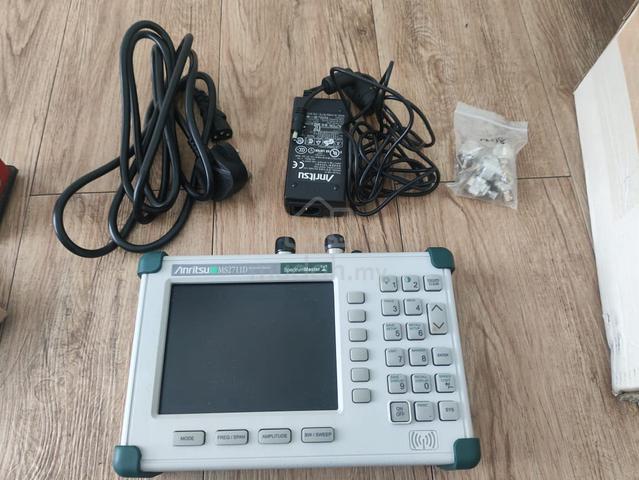

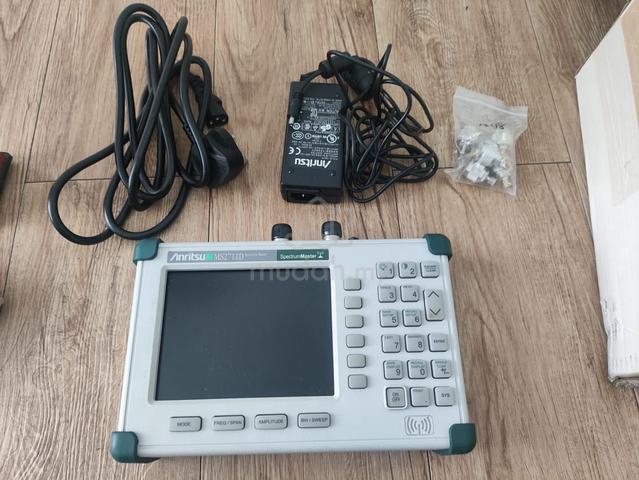

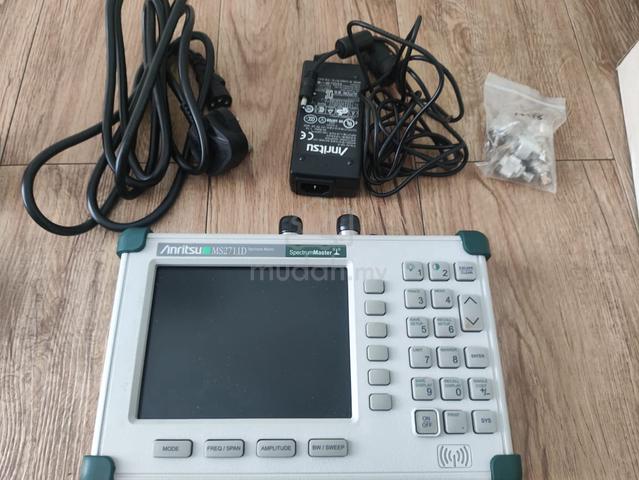

Up for sale is a used Anritsu MS2711D Color Portable RF Spectrum Analyzer 100kHz to 3GHz.

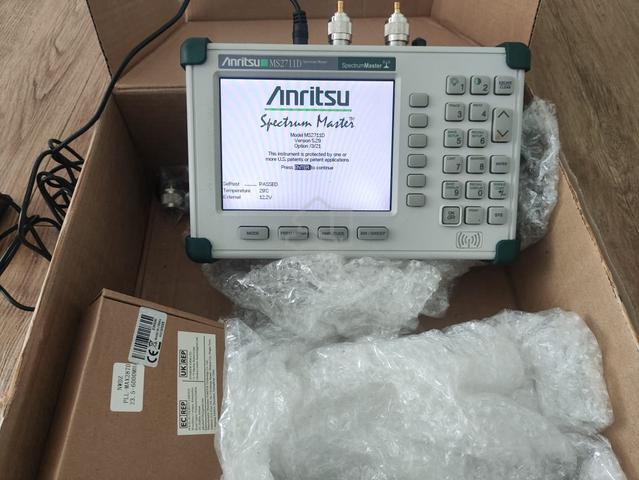

Fully functional, It passes all of its self tests and is in good working condition.

Note: Only require new battery.




Original Manufacturer Description:

Covering the 100 kHz to 3.0 GHz frequency range, with a built in standard pre-amplifier, the MS2711D handheld spectrum analyzer is the proven solution for installing, provisioning, maintaining and troubleshooting wireless systems and RF frequency spectrum interference issues. This portable spectrum analyzer features a built-in standard preamplifier in a compact, handheld design that can go “anywhere, anytime” with no backpack required. Ideal for field environments and applications that require mobility, such as site surveys and on-site system testing.

Handheld, battery-operated design
Built in pre-amplifier (standard)
Lightweight at only 4.9 lbs
Noise Level < -135 dBm typical (preamp on)
Quick Zoom-in, Zoom-out display in 1-2-5 sequence
RBWs: 100 Hz to 1 MHz in 1-3 sequence
VBWs: 3 Hz to 1 MHz in 1-3 sequence
Automatic, manual, and dynamic attenuator control
Amplitude Accuracy +/- 0.5 dB typical
Dedicated smart measurements
Trace Averaging
Reference Level Offset
Trace Overlay
Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish)
Store up to 15 measurement test set-ups
Save up to 200 measurement traces
Alphanumeric labeling of saved measurements
Automatic time and date stamp of saved data
Rechargeable/field-replaceable battery
6 Markers, limit lines and segmented limit lines
50-ohm Interface standard (75-ohm interface capability – instrument internally corrects for adapter loss)
RS232 Interface
Built in AM, FM and SSB demodulation
