Automatic Squat Water Tank Smart Flush Tandas Bowl

✅Usage: Bathroom Squatting Pan

✅Flushing: Automatic Sensor

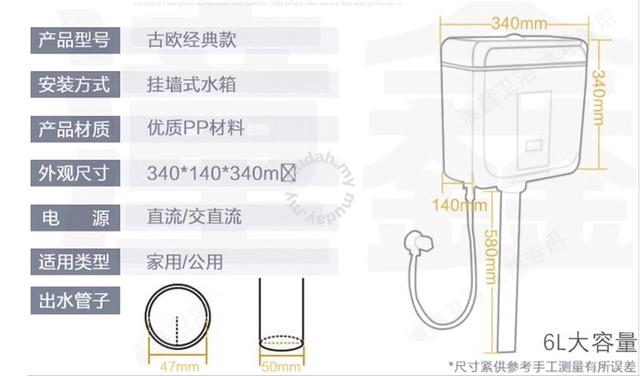

✅Size: 340*340*140mm

✅Style: Flush Water Tank

✅Volume: Max 6L

✅Electric: Direct Current / Alternating Current

✅Material: High Quality PP Material

✅Installation Way: Wall Mounted

Installation standard

1. According to the sewage outlet of the installed product, reserve the sewer pipe at an appropriate position away from the wall, and determine the distance between the sewer pipe entrance and the ground level.

2. The depth of the pit reserved for installing the squatting pan under the ground is greater than the height of the pan.

3. Put the connecting rubber plug into the water inlet hole of the squatting pan and clamp it tightly. Coat a layer of glass glue or putty on the outer edge that is in contact with the water inlet hole of the squatting pan, and insert the water inlet pipe into the water inlet hole of the rubber plug to make it well sealed with the rubber plug to prevent water leakage.

4. Coat the edge of the water outlet of the squatting toilet with a layer of glass glue or putty, put it into the inlet of the sewer pipe and screw it together, and set the toilet horizontally with coke residue or other fillers.

5. Open the water inlet system and check the joints for water leakage. If there is water leakage, check the joints. Until the problem is solved.

6. After checking that there is no water leakage at the joints, fill the toilet with fillers, and at the same time fill the contact surface of the ceramic and cement mortar with more than 1cm of asphalt or linoleum and other elastic materials. Fix the squatting pan in the horizontal plane with cement mortar, and then pave the bathroom floor tiles on the cement surface after it is stable and firm. Try flushing, and use it if there is no abnormality.
