Barang-barang Solar

Details Barang:

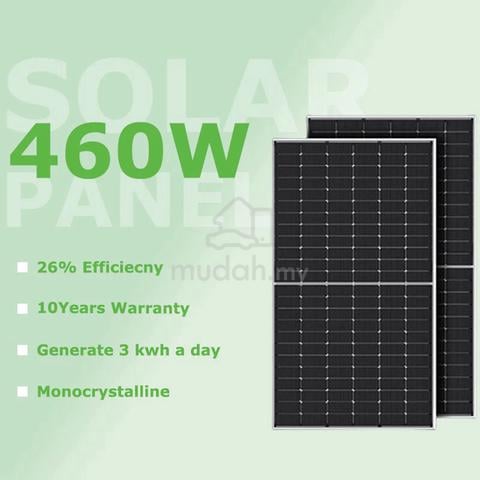

1. Panel solar 460 watts:

【Monocrystalline】
-Max Power Output(W): 460W±5%
-Voltage MPP Vmp(V): 30.51V
-Current MPP Imp(A): 15.08A
-Voltage Open Circuit Voc(V): 36.25V
-Short Circuit Current Isc(A): 15.83A
-Dimension: 1722mm*1134mm*30mm
-Weight: 22KG
-Price : RM200

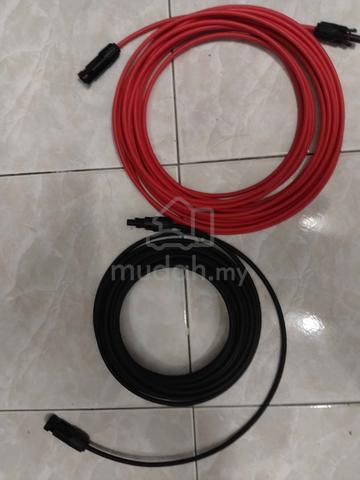

2. 4mm² PV1-F 1000V DC Solar Cable (1 pair) preinstalled with MC4 (pair 10meter)

-Rated Current : 25A ( 2.5mm² / 4mm² ), 30A ( 4mm² / 6mm² )
-Withstanding Voltage : 1500V DC
-Contact Resistance : ≤0.3mΩ
-Protection Class : Class II
-Temperature Range : -40 °C~+90°C
-Protection Degree : IP2X, unmated;IP67, mated
-Wire Size Range : 24mm² (12AWG)
-Unmating Force : 200 Newton
-Insulation Material : PPO
-Contact Material : Copper, silver plated
-Flame Class : 94-V0 or 94-5VA
-Price : RM50

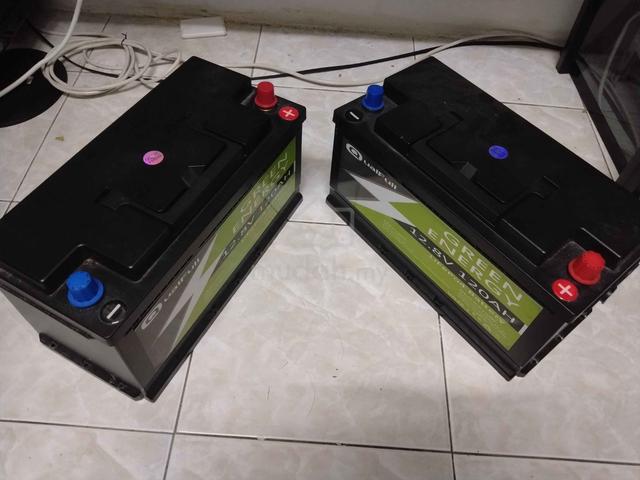

3. LiFePO4 Battery 【12.8V120AH/170AH CATL Lifepo4 Battery】Solar Battery Lithium Battery 4000 Cycles (2 unit)

-Brand: QualFull
-Model: GTB-LT-12.8-120
-Rated voltage: 12.8V
-Rated power: 1536wh
-Nominal capacity: 120Ah
-Cycle life: 6000-15000 times
-Continuous discharge current: 50A
-Maximum continuous discharge current: 100A
-Recommended low voltage disconnection: 10V
-Discharge cut-off voltage: ＞8.4V (50~150MS)
-Reconnection voltage: ＞10V
-Recommended charging current: 20A
-Maximum charging current: 30A
-Recommended charging voltage: 14.6V
-Charging and discharging storage temperature: -15~55℃
-Product weight: 10.5KG
-Product size: 358x175x190mm
-Shell material: stainless steel shell
-Price : RM1000

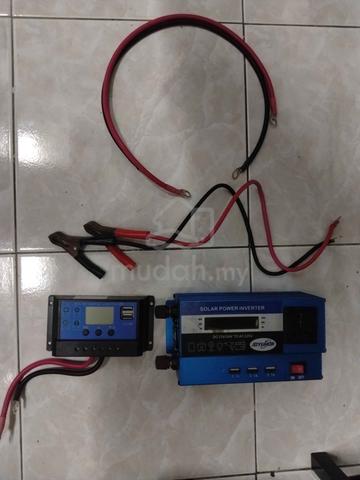

4. Power Inverter 6000W

-Input voltage: DC12V/24V
-Output voltage: AC 220V
-LED display: DC/AC voltage display.
-Output frequency: 50Hz
-Inverter Peak power: 6000W.Rated power: 400W. (12V/24V universal)
-Output waveform: Modified sine wave.
-Package size: 243*97*70mm
-Weight: 0.84kg.
-Price : RM50

5. Other (Free jika beli semua diatas)
-12V/24V 30A Solar Panel Battery solar Charger Charging Controller Regulator usb charger charging
-10mm2 (8AWG) Battery Cable 100% Pure Copper with M8 Ring Terminal Lugs (4 item see pic)

semua barang dia atas belum pernah pakai. apa-apa roger dulu..terima kasih
