New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 1.0 HP 1 HP 1HP
Penyaman Udara
Penghawa Dingin

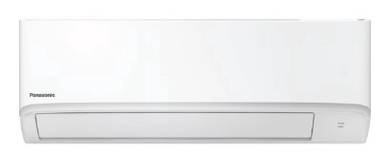

Standard Inverter PU Series (AKH-1)

Instantly Cool Spaces On Demand
Panasonic Standard Inverter PU Series (AKH-1) features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device. Achieve energy efficiency without compromising comfort with ECO Mode with A.I. Control, Inverter technology, and R32 refrigerant.
*BIG FLAP is applicable to CS-PU9AKH-1 and CS-PU12AKH-1. AEROWINGS is applicable to CS-PU18AKH-1 and CS-PU24AKH-1.

Features
Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Cool Efficiency, Energy-Saving with Inverter Technology
Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter technology, and enjoy both lower bills and a reduced environmental impact.

Note: Up to 52% energy savings based on a comparison with the 2.5HP Standard Inverter PU model versus the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

Instant Powerful Cooling with a Push of a Button
POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling even during start-up.
*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-PU9AKH-1 and CS-PU12AKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-PU18AKH-1 and CS-PU24AKH-1 only.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specs

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Intelligently balances energy savings and comfort using ECO Mode with A.I. Control

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

Energy savings with Inverter and environmentally friendly R32 refrigerant

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-PU9AKH-1_CU-RU9AKH
Cooling Capacity (min-max) (kW)	2.65 (0.90-3.40) kW
Cooling Capacity (min-max) (Btu/h)	9,040 (3,070-11,600) Btu/h
EER (min-max) (Btu/hW)	12.05 (13.64-11.26) Btu/hW
EER (min-max) (W/W)	3.53 (4.00-3.30) W/W
CSPF (W/W)	5.57 W/W (5★)
Voltage (V)	220-240 V
Current (A)	3.7-3.4 A
Power Input (min-max) (W)	750 (225-1,030) W
Moisture Removal (L/h)	1.6 L/h
Moisture Removal (Pt/h)	3.4 Pt/h
Indoor Unit Air Circulation	10.3 m³/min (365 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	38/26/19 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	290 mm x 765 mm x 214 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-1/8 inch x 8-7/16 inch
Indoor Unit Net Weight	8 kg (18 lb)
Indoor Unit Gross Weight	9 kg (20 lb)
Outdoor Unit Air Circulation	26.7 m³/min (940 ft³/min)
Outdoor Unit Noise Level (H)	47 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm
Outdoor Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch
Outdoor Unit Net Weight	18 kg (40 lb)
Outdoor Unit Gross Weight	20 kg (44 lb)
Refrigerant Type	R32
Refrigerant Amount (g)	410 g
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)
Pipe Extension (Chargeless Pipe Length)		7.5 m
Pipe Extension (Maximum Pipe Length)		20 m
Pipe Extension (Maximum Elevation Length)	15 m
Pipe Extension (Additional Refrigerant Gas*)	10 g/m
Power Supply	Indoor
Odour Removing Function	Yes
Removable, Washable Panel	Yes
Wi-Fi	Optional (Network adaptor required)
24-Hour Dual ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Optional
Powerful Mode	Yes
Sleep Mode	Yes
Quiet Mode	Yes
Soft Dry Operation Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Inverter Control	Yes
ECO Mode with A.I.	Yes
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (maximum)	20 m
Top Panel Maintenance Access		Yes
Self-Diagnostic Function	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

Barter Corner

Panasonic PU9 1.0HP Aircond Inverter Installation

New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 2.5 HP
Penyaman Udara
Penghawa Dingin

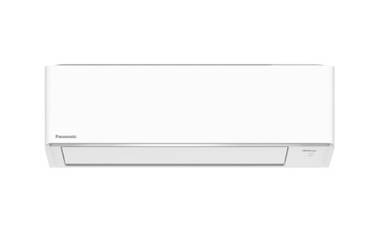

Eco Inverter YU Series (AKH-1)

Efficient Savings, Convenient Cooling
Panasonic Eco Inverter YU Series (AKH-1) leverages Inverter technology to deliver outstanding efficiency, while the intelligent ECO Mode with A.I. Control seamlessly balances comfort and energy savings. Enjoy instant, powerful cooling with just a push of the POWERFUL mode button. Manage your air conditioners directly from your mobile device with the Panasonic Comfort Cloud App (optional network adaptor required). Experience the perfect blend of cooling convenience and eco-performance.

Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Cool Efficiency, Energy-Saving with Inverter Technology
Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable-speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter technology, and enjoy both lower bills and a reduced environmental impact.

Note: Up to 41% energy savings based on the comparison of the 2.5HP Eco Inverter model with the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings while providing consistent cooling comfort.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-YU9AKH-1, CS-YU12AKH-1 and CS-YU18AKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-YU24AKH-1 and CS-YU30AKH-1 only.

Instant Powerful Cooling with a Push of a Button
POWERFUL mode cools your room faster, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specs

POWERFUL Mode
Inverter
ECO Mode with A.I. Control
BIG FLAP
AEROWINGS
R32 Refrigerant
Quiet Mode
Sleep Mode
Energy savings with Inverter technology

Balances energy savings and comfort using ECO Mode with A.I. Control

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

POWERFUL mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-YU24AKH-1_CU-YU24AKH-1
Cooling Capacity (min-max) (kW)	6.80 (1.50-7.04) kW
Cooling Capacity (min-max) (Btu/h)	23,200 (5,120-24,000) Btu/h
EER (min-max) (Btu/hW)	11.90 (14.63-11.43) Btu/hW
EER (min-max) (W/W)	3.49 (4.29-3.35) W/W
CSPF (W/W)	4.92 W/W (4★)
Voltage (V)	230 V
Current (A)	8.60 A
Power Input (min-max) (W)	1,950 (350-2,100) W
Moisture Removal (L/h)	3.9 L/h
Moisture Removal (Pt/h)	8.2 Pt/h
Indoor Unit Air Circulation		19.9 m³/min (700 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	45/34/28 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)		295 mm x 1,060 mm x 249 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-5/8 inch x 41-3/4 inch x 9-13/16 inch
Indoor Unit Net Weight	12 kg (26 lb)
Indoor Unit Gross Weight	15 kg (33 lb)
Outdoor Unit Air Circulation	34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H)	53 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch)	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight	30 kg (66 lb)
Outdoor Unit Gross Weight	33 kg (73 lb)
Refrigerant Type	R32
Refrigerant Amount	870 g
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)		10 m
Pipe Extension (Maximum Pipe Length)		30 m
Pipe Extension (Maximum Elevation Length)		20 m
Pipe Extension (Additional Refrigerant Gas*)		15 g/m
Power Supply	Indoor
Odour Removing Function	Yes
Removable, Washable Panel	Yes
Wi-Fi	Optional (Network adaptor required)
24-Hour Dual ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Optional
Powerful Mode	Yes
Sleep Mode	Yes
Quiet Mode	Yes
Soft Dry Operation Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Inverter Control	Yes
ECO Mode with A.I.	Yes
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (maximum)	30 m
Top Panel Maintenance Access	Yes
Self-Diagnostic Function	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

Panasonic YU24AKH-1 2.5HP Aircond Install

New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 2.0 HP 2 HP 2HP
Penyaman Udara
Penghawa Dingin

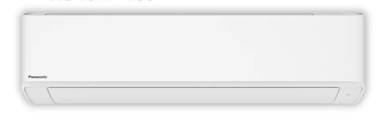

Eco Inverter YU Series (AKH-1)

Efficient Savings, Convenient Cooling
Panasonic Eco Inverter YU Series (AKH-1) leverages Inverter technology to deliver outstanding efficiency, while the intelligent ECO Mode with A.I. Control seamlessly balances comfort and energy savings. Enjoy instant, powerful cooling with just a push of the POWERFUL mode button. Manage your air conditioners directly from your mobile device with the Panasonic Comfort Cloud App (optional network adaptor required). Experience the perfect blend of cooling convenience and eco-performance.

Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Cool Efficiency, Energy-Saving with Inverter Technology
Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable-speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter technology, and enjoy both lower bills and a reduced environmental impact.

Note: Up to 41% energy savings based on the comparison of the 2.5HP Eco Inverter model with the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings while providing consistent cooling comfort.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-YU9AKH-1, CS-YU12AKH-1 and CS-YU18AKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-YU24AKH-1 and CS-YU30AKH-1 only.

Instant Powerful Cooling with a Push of a Button
POWERFUL mode cools your room faster, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specs

POWERFUL Mode
Inverter
ECO Mode with A.I. Control
BIG FLAP
AEROWINGS
R32 Refrigerant
Quiet Mode
Sleep Mode
Energy savings with Inverter technology

Balances energy savings and comfort using ECO Mode with A.I. Control

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

POWERFUL mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-YU18AKH-1_CU-YU18AKH-1
Cooling Capacity (min-max) (kW)	5.30 (1.30-5.60) kW
Cooling Capacity (min-max) (Btu/h)	18,100 (4,430-19,100) Btu/h
EER (min-max) (Btu/hW)	10.90 (13.84-10.16) Btu/hW
EER (min-max) (W/W)	3.19 (4.06-2.98) W/W
CSPF (W/W)	4.84 W/W (4★)
Voltage (V)	230 V
Current (A)	7.30 A
Power Input (min-max) (W)	1,660 (320-1,880) W
Moisture Removal (L/h)	2.9 L/h
Moisture Removal (Pt/h)	6.1 Pt/h
Indoor Unit Air Circulation		12.6 m³/min (445 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	44/34/28 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)		290 mm x 765 mm x 214 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-1/8 inch x 8-7/16 inch
Indoor Unit Net Weight	9 kg (20 lb)
Indoor Unit Gross Weight	10 kg (22 lb)
Outdoor Unit Air Circulation	39.3 m³/min (1,390 ft³/min)
Outdoor Unit Noise Level (H)	52 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch)	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight	27 kg (60 lb)
Outdoor Unit Gross Weight	30 kg (66 lb)
Refrigerant Type	R32
Refrigerant Amount	690 g
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)		10 m
Pipe Extension (Maximum Pipe Length)		30 m
Pipe Extension (Maximum Elevation Length)		20 m
Pipe Extension (Additional Refrigerant Gas*)		15 g/m
Power Supply	Indoor
Odour Removing Function	Yes
Removable, Washable Panel	Yes
Wi-Fi	Optional (Network adaptor required)
24-Hour Dual ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Optional
Powerful Mode	Yes
Sleep Mode	Yes
Quiet Mode	Yes
Soft Dry Operation Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Inverter Control	Yes
ECO Mode with A.I.	Yes
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (maximum)	30 m
Top Panel Maintenance Access	Yes
Self-Diagnostic Function	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

Panasonic YU18AKH-1 2.0HP Aircond Inverter Install

New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 3.0 HP 3 HP 3HP
Penyaman Udara
Penghawa Dingin

Eco Inverter YU Series (AKH-1)

Efficient Savings, Convenient Cooling
Panasonic Eco Inverter YU Series (AKH-1) leverages Inverter technology to deliver outstanding efficiency, while the intelligent ECO Mode with A.I. Control seamlessly balances comfort and energy savings. Enjoy instant, powerful cooling with just a push of the POWERFUL mode button. Manage your air conditioners directly from your mobile device with the Panasonic Comfort Cloud App (optional network adaptor required). Experience the perfect blend of cooling convenience and eco-performance.

Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Cool Efficiency, Energy-Saving with Inverter Technology
Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable-speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter technology, and enjoy both lower bills and a reduced environmental impact.

Note: Up to 41% energy savings based on the comparison of the 2.5HP Eco Inverter model with the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings while providing consistent cooling comfort.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-YU9AKH-1, CS-YU12AKH-1 and CS-YU18AKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-YU24AKH-1 and CS-YU30AKH-1 only.

Instant Powerful Cooling with a Push of a Button
POWERFUL mode cools your room faster, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specs

POWERFUL Mode
Inverter
ECO Mode with A.I. Control
BIG FLAP
AEROWINGS
R32 Refrigerant
Quiet Mode
Sleep Mode
Energy savings with Inverter technology

Balances energy savings and comfort using ECO Mode with A.I. Control

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

POWERFUL mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-YU30AKH-1_CU-YU30AKH-1
Cooling Capacity (min-max) (kW)	8.80 (1.70-9.10) kW
Cooling Capacity (min-max) (Btu/h)		30,000 (5,800-31,000) Btu/h
EER (min-max) (Btu/hW)	10.34 (14.50-9.69) Btu/hW
EER (min-max) (W/W)	3.03 (4.25-2.84) W/W
CSPF (W/W)	-
Voltage (V)	230 V
Current (A)	12.70 A
Power Input (min-max) (W)	2,900 (400-3,200) W
Moisture Removal (L/h)	5.0 L/h
Moisture Removal (Pt/h)	10.6 Pt/h
Indoor Unit Air Circulation		25.5 m³/min (900 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	51/41/38 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)		309 mm x 1,212 mm x 269 mm
Indoor Unit Dimensions (H x W x D) (inch)	12-3/16 inch x 47-23/32 inch x 10-19/32 inch
Indoor Unit Net Weight	15 kg (33 lb)
Indoor Unit Gross Weight	-
Outdoor Unit Air Circulation	51.4 m³/min (1,810 ft³/min)
Outdoor Unit Noise Level (H)	54 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch)	27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Net Weight	40 kg (88 lb)
Outdoor Unit Gross Weight	-
Refrigerant Type	R32
Refrigerant Amount	1,230 g
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length)		10 m
Pipe Extension (Maximum Pipe Length)		30 m
Pipe Extension (Maximum Elevation Length)		20 m
Pipe Extension (Additional Refrigerant Gas*)		25 g/m
Power Supply	Outdoor
Odour Removing Function	Yes
Removable, Washable Panel	Yes
Wi-Fi	Optional (Network adaptor required)
24-Hour Dual ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Optional
Powerful Mode	Yes
Sleep Mode	Yes
Quiet Mode	Yes
Soft Dry Operation Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Inverter Control	Yes
ECO Mode with A.I.	Yes
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (maximum)	30 m
Top Panel Maintenance Access	Yes
Self-Diagnostic Function	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

Panasonic YU30AKH-1 3.0HP Aircond Inverter Install

New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 1.5 HP
Penyaman Udara
Penghawa Dingin

Eco Inverter YU Series (AKH-1)

Efficient Savings, Convenient Cooling
Panasonic Eco Inverter YU Series (AKH-1) leverages Inverter technology to deliver outstanding efficiency, while the intelligent ECO Mode with A.I. Control seamlessly balances comfort and energy savings. Enjoy instant, powerful cooling with just a push of the POWERFUL mode button. Manage your air conditioners directly from your mobile device with the Panasonic Comfort Cloud App (optional network adaptor required). Experience the perfect blend of cooling convenience and eco-performance.

Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Cool Efficiency, Energy-Saving with Inverter Technology
Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable-speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter technology, and enjoy both lower bills and a reduced environmental impact.

Note: Up to 41% energy savings based on the comparison of the 2.5HP Eco Inverter model with the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings while providing consistent cooling comfort.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-YU9AKH-1, CS-YU12AKH-1 and CS-YU18AKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-YU24AKH-1 and CS-YU30AKH-1 only.

Instant Powerful Cooling with a Push of a Button
POWERFUL mode cools your room faster, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specs

POWERFUL Mode
Inverter
ECO Mode with A.I. Control
BIG FLAP
AEROWINGS
R32 Refrigerant
Quiet Mode
Sleep Mode
Energy savings with Inverter technology

Balances energy savings and comfort using ECO Mode with A.I. Control

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

POWERFUL mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-YU12AKH-1_CU-YU12AKH-1
Cooling Capacity (min-max) (kW)	3.52 (1.15-3.62) kW
Cooling Capacity (min-max) (Btu/h)	12,000 (3,920-12,300) Btu/h
EER (min-max) (Btu/hW)	10.00 (13.52-9.76) Btu/hW
EER (min-max) (W/W)	2.93 (3.97-2.87) W/W
CSPF (W/W)	3.98 W/W (3★)
Voltage (V)	230 V
Current (A)	5.70 A
Power Input (min-max) (W)	1,200 (290-1,260) W
Moisture Removal (L/h)	2.0 L/h
Moisture Removal (Pt/h)	4.2 Pt/h
Indoor Unit Air Circulation	11.0 m³/min (390 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	40/28/21 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)		290 mm x 765 mm x 214 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-1/8 inch x 8-7/16 inch
Indoor Unit Net Weight	8 kg (18 lb)
Indoor Unit Gross Weight	9 kg (20 lb)
Outdoor Unit Air Circulation	24.3 m³/min (860 ft³/min)
Outdoor Unit Noise Level (H)	51 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm
Outdoor Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch
Outdoor Unit Net Weight	19 kg (42 lb)
Outdoor Unit Gross Weight	21 kg (46 lb)
Refrigerant Type	R32
Refrigerant Amount	610 g
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)
Pipe Extension (Chargeless Pipe Length)		7.5 m
Pipe Extension (Maximum Pipe Length)		20 m
Pipe Extension (Maximum Elevation Length)		15 m
Pipe Extension (Additional Refrigerant Gas*)		10 g/m
Power Supply	Indoor
Odour Removing Function	Yes
Removable, Washable Panel	Yes
Wi-Fi	Optional (Network adaptor required)
24-Hour Dual ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Optional
Powerful Mode	Yes
Sleep Mode	Yes
Quiet Mode	Yes
Soft Dry Operation Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Inverter Control	Yes
ECO Mode with A.I.	Yes
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (maximum)	20 m
Top Panel Maintenance Access	Yes
Self-Diagnostic Function	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

Panasonic YU12AKH-1 1.5HP Aircond Inverter Install

New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 1.0 HP 1 HP 1HP
Penyaman Udara
Penghawa Dingin

Eco Inverter YU Series (AKH-1)

Efficient Savings, Convenient Cooling
Panasonic Eco Inverter YU Series (AKH-1) leverages Inverter technology to deliver outstanding efficiency, while the intelligent ECO Mode with A.I. Control seamlessly balances comfort and energy savings. Enjoy instant, powerful cooling with just a push of the POWERFUL mode button. Manage your air conditioners directly from your mobile device with the Panasonic Comfort Cloud App (optional network adaptor required). Experience the perfect blend of cooling convenience and eco-performance.

Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Cool Efficiency, Energy-Saving with Inverter Technology
Panasonic air conditioners deliver excellent energy efficiency, harnessing the power of Inverter technology. Panasonic's Inverter technology utilises a micro-computer to control a variable-speed compressor, ensuring precise temperature control and minimising energy consumption while maintaining a balanced comfort level. Choose the smarter, greener option with Inverter technology, and enjoy both lower bills and a reduced environmental impact.

Note: Up to 41% energy savings based on the comparison of the 2.5HP Eco Inverter model with the lowest 2-star model. Actual savings may vary depending on model and usage.

Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings while providing consistent cooling comfort.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-YU9AKH-1, CS-YU12AKH-1 and CS-YU18AKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-YU24AKH-1 and CS-YU30AKH-1 only.

Instant Powerful Cooling with a Push of a Button
POWERFUL mode cools your room faster, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specs

POWERFUL Mode
Inverter
ECO Mode with A.I. Control
BIG FLAP
AEROWINGS
R32 Refrigerant
Quiet Mode
Sleep Mode
Energy savings with Inverter technology

Balances energy savings and comfort using ECO Mode with A.I. Control

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

POWERFUL mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

CS-YU9AKH-1_CU-YU9AKH-1
Cooling Capacity (min-max) (kW)	2.65 (1.00-2.78) kW
Cooling Capacity (min-max) (Btu/h)	9,040 (3,410-9,480) Btu/h
EER (min-max) (Btu/hW)	11.30 (14.21-10.53) Btu/hW
EER (min-max) (W/W)	3.31 (4.17-3.09) W/W
CSPF (W/W)	4.38 W/W (3★)
Voltage (V)	230 V
Current (A)	3.80 A
Power Input (min-max) (W)	800 (240-900) W
Moisture Removal (L/h)	1.6 L/h
Moisture Removal (Pt/h)	3.4 Pt/h
Indoor Unit Air Circulation	10.3 m³/min (365 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	38/26/21 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	290 mm x 765 mm x 214 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-1/8 inch x 8-7/16 inch
Indoor Unit Net Weight	8 kg (18 lb)
Indoor Unit Gross Weight	9 kg (20 lb)
Outdoor Unit Air Circulation	26.7 m³/min (940 ft³/min)
Outdoor Unit Noise Level (H)	48 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm
Outdoor Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch
Outdoor Unit Net Weight	17 kg (37 lb)
Outdoor Unit Gross Weight	19 kg (42 lb)
Refrigerant Type	R32
Refrigerant Amount	420 g
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)
Pipe Extension (Chargeless Pipe Length)		7.5 m
Pipe Extension (Maximum Pipe Length)		20 m
Pipe Extension (Maximum Elevation Length)	15 m
Pipe Extension (Additional Refrigerant Gas*)	10 g/m
Power Supply	Indoor
Odour Removing Function	Yes
Removable, Washable Panel	Yes
Wi-Fi	Optional (Network adaptor required)
24-Hour Dual ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Optional
Powerful Mode	Yes
Sleep Mode	Yes
Quiet Mode	Yes
Soft Dry Operation Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Inverter Control	Yes
ECO Mode with A.I.	Yes
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (maximum)	20 m
Top Panel Maintenance Access	Yes
Self-Diagnostic Function	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

Panasonic YU9AKH-1 1.0HP Aircond Inverter Install

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort
Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9WKH-1 and CS-PN12WKH-1. AEROWINGS is applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1.

Features
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-PN9WKH-1 and CS-PN12WKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1 only.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Calm and Peaceful Environment with Quiet Mode
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Environmentally Friendly R32 Refrigerant
Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

Fits Perfectly Anywhere
Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.

Convenient Control at Your Fingertips
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

Specs
CS-PN30XKH-1_CU-PN30XKH-1
Model Name	 PN30XKH-1
Cooling Capacity (kW)	8.80 kW
Cooling Capacity (Btu/h)	30,000 Btu/h
EER (Btu/hW)		12.40 Btu/hW
EER (W/W)	3.64 W/W
CSPF (W/W)	-
Voltage (V)	230 V
Current (A)	10.6 A
Power Input (W)	2,420 W
Moisture Removal (L/h)	5.0 L/h
Moisture Removal (Pt/h)	10.6 Pt/h
Indoor Unit Air Circulation		25.5 m³/min (900 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	51/46 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	309 mm x 1,212 mm x 269 mm
Indoor Unit Dimensions (H x W x D) (inch)	12-3/16 inch x 47-23/32 inch x 10-19/32 inch
Indoor Unit Net Weight	16 kg (35 lb)
Outdoor Unit Air Circulation	54.4 m³/min (1,920 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo)		56 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch)	27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Net Weight	53 kg (117 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length)		7.5 m
Pipe Extension (Maximum Pipe Length)		40 m
Pipe Extension (Maximum Elevation Length)		30 m
Pipe Extension (Additional Refrigerant Gas*)		25 g/m
Power Supply	Outdoor
Sleep Mode	Yes
Powerful Mode	Yes
Soft Dry Operation Mode	Yes
Quiet Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Odour Removing Function	Yes
Removable Washable Panel	Yes
24-Hour ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (max.)	40 m
Top Panel Maintenance Access		Yes
Note
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Panasonic PN30XKH-1 3.0HP Aircond w Installation

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort
Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9WKH-1 and CS-PN12WKH-1. AEROWINGS is applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1.

Features
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-PN9WKH-1 and CS-PN12WKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1 only.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Calm and Peaceful Environment with Quiet Mode
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Environmentally Friendly R32 Refrigerant
Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

Fits Perfectly Anywhere
Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.

Convenient Control at Your Fingertips
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

Specs
CS-PN24XKH-1_CU-PN24XKH-1
Model Name	 PN24XKH-1
Cooling Capacity (kW)	6.85 kW
Cooling Capacity (Btu/h)	23,400 Btu/h
EER (Btu/hW)		10.68 Btu/hW
EER (W/W)	3.13 W/W
CSPF (W/W)	3.36 W/W
Voltage (V)	230 V
Current (A)	9.7 A
Power Input (W)	2,190 W
Moisture Removal (L/h)	3.9 L/h
Moisture Removal (Pt/h)	8.2 Pt/h
Indoor Unit Air Circulation		20.5 m³/min (724 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	47/42 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	295 mm x 1,040 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Net Weight	12 kg (26 lb)
Outdoor Unit Air Circulation	40.3 m³/min (1,420 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo)		55 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch)	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight	41 kg (90 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length)		7.5 m
Pipe Extension (Maximum Pipe Length)		30 m
Pipe Extension (Maximum Elevation Length)		20 m
Pipe Extension (Additional Refrigerant Gas*)	25 g/m
Power Supply	Indoor
Sleep Mode	Yes
Powerful Mode	Yes
Soft Dry Operation Mode	Yes
Quiet Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Odour Removing Function	Yes
Removable Washable Panel	Yes
24-Hour ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (max.)	30 m
Top Panel Maintenance Access		Yes
Note
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Panasonic PN24XKH-1 2.5HP Aircond w Installation

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort
Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9WKH-1 and CS-PN12WKH-1. AEROWINGS is applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1.

Features
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-PN9WKH-1 and CS-PN12WKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1 only.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Calm and Peaceful Environment with Quiet Mode
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Environmentally Friendly R32 Refrigerant
Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

Fits Perfectly Anywhere
Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.

Convenient Control at Your Fingertips
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

Specs
CS-PN18XKH-1B_CU-PN18XKH-1B
Model Name	 PN18XKH-1B
Cooling Capacity (kW)	5.33 kW
Cooling Capacity (Btu/h)	18,200 Btu/h
EER (Btu/hW)		11.23 Btu/hW
EER (W/W)	3.29 W/W
CSPF (W/W)	3.52 W/W
Voltage (V)	230 V
Current (A)	7.1 A
Power Input (W)	1,620 W
Moisture Removal (L/h)	2.9 L/h
Moisture Removal (Pt/h)	6.1 Pt/h
Indoor Unit Air Circulation		18.4 m³/min (650 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	43/39 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	295 mm x 1,040 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Net Weight	12 kg (26 lb)
Outdoor Unit Air Circulation	39.3 m³/min (1,390 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo)		53 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch)	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight	35 kg (77 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)		7.5 m
Pipe Extension (Maximum Pipe Length)		30 m
Pipe Extension (Maximum Elevation Length)		20 m
Pipe Extension (Additional Refrigerant Gas*)	15 g/m
Power Supply	Indoor
Sleep Mode	Yes
Powerful Mode	Yes
Soft Dry Operation Mode	Yes
Quiet Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Odour Removing Function	Yes
Removable Washable Panel	Yes
24-Hour ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (max.)	30 m
Top Panel Maintenance Access	Yes
Note
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Panasonic PN18XKH-1 2.0HP Aircond w Installation

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort
Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9WKH-1 and CS-PN12WKH-1. AEROWINGS is applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1.

Features
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-PN9WKH-1 and CS-PN12WKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1 only.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Calm and Peaceful Environment with Quiet Mode
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Environmentally Friendly R32 Refrigerant
Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

Fits Perfectly Anywhere
Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.

Convenient Control at Your Fingertips
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

Specs
CS-PN12WKH-1_CU-PN12WKH-1
Model Name		PN12WKH-1
Cooling Capacity (kW)	3.52 kW
Cooling Capacity (Btu/h)	12,000 Btu/hBtu/h
EER (Btu/hW)	11.21 Btu/hW
EER (W/W)	3.29 W/W
CSPF (W/W)	3.43 W/W
Voltage (V)	230 V
Current (A)	4.8 A
Power Input (W)	1,070 W
Moisture Removal (L/h)	2.0 L/h
Moisture Removal (Pt/h)	4.2 Pt/h
Indoor Unit Air Circulation	11.6 m³/min (409 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	41/29 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	290 mm x 779 mm x 209 mm	Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-11/16 inch x 8-1/4 inch
Indoor Unit Net Weight	8 kg (18 lb)
Outdoor Unit Air Circulation	29.8 m³/min (1,050 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo)		51 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	542 mm x 780 mm x 289 mm
Outdoor Unit Dimensions (H x W x D) (inch)	21-11/32 inch x 30-23/32 inch x 11-13/32 inch
Outdoor Unit Net Weight	26 kg (57 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)
Pipe Extension (Chargeless Pipe Length)		7.5 m
Pipe Extension (Maximum Pipe Length)		20 m
Pipe Extension (Maximum Elevation Length)		15 m
Pipe Extension (Additional Refrigerant Gas*)	10 g/m
Power Supply	Indoor
Sleep Mode	Yes
Powerful Mode	Yes
Soft Dry Operation Mode	Yes
Quiet Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Odour Removing Function	Yes
Removable Washable Panel	Yes
24-Hour ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (max.)	20 m
Top Panel Maintenance Access	Yes
Note
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Panasonic PN12WKH-1 1.5HP Aircond w Installation

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort
Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9WKH-1 and CS-PN12WKH-1. AEROWINGS is applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1.

Features
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-PN9WKH-1 and CS-PN12WKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1 only.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Calm and Peaceful Environment with Quiet Mode
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Environmentally Friendly R32 Refrigerant
Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

Fits Perfectly Anywhere
Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.

Convenient Control at Your Fingertips
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

Specs
CS-PN9WKH-1_CU-PN9WKH-1
Model Name	PN9WKH-1
Cooling Capacity (kW)	2.78 kW
Cooling Capacity (Btu/h)	9,500 Btu/h
EER (Btu/hW)	11.59 Btu/hW
EER (W/W)	3.39 W/W
CSPF (W/W)	3.48 W/W
Voltage (V)	230 V
Current (A)	3.7 A
Power Input (W)	820 W
Moisture Removal (L/h)	1.6 L/h
Moisture Removal (Pt/h)	3.4 Pt/h
Indoor Unit Air Circulation	10.9 m³/min (385 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	38/26 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	290 mm x 779 mm x 209 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-11/16 inch x 8-1/4 inch
Indoor Unit Net Weight	8 kg (18 lb)
Outdoor Unit Air Circulation	28.8 m³/min (1,020 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo)	48 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm
Outdoor Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch
Outdoor Unit Net Weight	21 kg (46 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m
Pipe Extension (Maximum Pipe Length)	20 m
Pipe Extension (Maximum Elevation Length)	15 m
Pipe Extension (Additional Refrigerant Gas*)	10 g/m
Power Supply	Indoor
Sleep Mode	Yes
Powerful Mode	Yes
Soft Dry Operation Mode	Yes
Quiet Mode	Yes
Airflow Direction Control (Up & Down)	Yes
Manual Horizontal Airflow Direction Control	Yes
Odour Removing Function	Yes
Removable Washable Panel	Yes
24-Hour ON & OFF Real Setting Timer	Yes
LCD Wireless Remote Control	Yes
Wired Remote Control	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes
Long Piping (max.)	20 m
Top Panel Maintenance Access	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Panasonic PN9WKH-1 1.0HP Aircond with Installation

New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 2.5 HP
Penyaman Udara
Penghawa Dingin

Overview
FTKF Series offers powerful year-round cooling to achieve optimum levels of comfort.

Product Range
R32 Inverter Single Split

Refrigerant
R32

Capacities
1.0 - 2.5hp

Features
ECONO MODE
This function limits both the maximum running current and maximum power consumption. It is particularly effective if the cooling load is high, for example at start-up or during large gathering and periods of direct.

GIN-ION BLUE FILTER
This filter is treated with a positively charged silver ion (In Japanese, 銀Gin translates as silver) which efficiently draws viruses onto its surface and decomposes up to 99.9% in 2 hours. On top of that, this filter can deactivate bacteria and inhibit fungal growth on its surface to improve the quality of indoor air for a healthier lifestyle. The filter delivers consistent performance for around a year if filter is cleaned once every 2 weeks.

LOW/HIGH VOLTAGE SHIELD
All electrical components in indoor and outdoor units are designed for extreme durability. The printed circuit boards can easily handle large variation of voltage (150V-440V) and increase operation durability.

REMOVABLE DRAIN PAN
REMOVABLE DRAIN PAN
The drain pan can be removed easily without any assembly, made it easy for maintenance. It reduces cleaning time dramatically and ensures a perfect finish.

SMART CONTROL (BUILT IN)
SMART CONTROL (BUILT IN)
The Smart Control turns a smartphone into a remote controller which can be used inside or outside your home (GO DAIKIN App). Together it gives you full control such as start/ stop, operation mode and set temperature as well as advanced features like weekly scheduling. It allows you to monitor your system to ensure it is performing as desired.

*Free 2 years upgrade to Smart Control Pro upon first successful pairing to network adaptor (AWM61A01). Click to learn more about subscription plan.

3 YEARS WARRANTY INVERTER PROMOTION!*
Designed for durability and component quality, the units come with 5 years warranty for compressor and 3 years warranty for general parts.

*Click here to learn more on the Daikin extended warranty promotional campaign 2025 terms and conditions.

Technical Specifications
FTKF-C Series
Indoor		FTKF71CV1MF
Outdoor		RKF71CV1M
Specifications / Model name
Type		Inverter
Horsepower	(hp)	2.5
Refrigerant		R32
Rated Cooling Capacity (Min-Max)	(Btu/h)	24,000 (6,600-24,500)
Rated Power Consumption (Min-Max)	(W)	1,965 (380-2,300)
Rated Running Current	(A)	8.61
CSPF	(Wh/Wh)	6.00
Energy Rating		5 star
Air Flow Rate	(CFM)	640
Power Supply	(V/Ph/Hz)	220-240/1/50
Sound Pressure Level - Indoor (H/L/SL)	(dBA)	43/41/36/30
Dimension - Indoor (H x W x D)	(mm)	297 x 990 x 273
Dimension - Outdoor (H x W x D)	(mm)	615 x 845 x 300
Unit weight - Indoor	(kg)	13.0
Unit weight - Outdoor	(kg)	37
Copper Pipe Size - Liquid	(mm)	6.4
Copper Pipe Size - Gas	(mm)	12.7
Heat Exchanger		Hydrophillic Blue Fin
Controller		Wireless / Wired
*Wired Model DO NOT Have Built-In Wi-Fi

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

2.5HP Daikin FTKF71 Aircond Inverter Installation

New unit.

35% deposit required upon order confirmation.

Include standard installation.

Installation within 3 working days.

Aircond, Air Cond Aircon Air Con. 2.0 HP 2 HP 2HP
Penyaman Udara
Penghawa Dingin

Overview
FTKF Series offers powerful year-round cooling to achieve optimum levels of comfort.

Product Range
R32 Inverter Single Split

Refrigerant
R32

Capacities
1.0 - 2.5hp

Features
ECONO MODE
This function limits both the maximum running current and maximum power consumption. It is particularly effective if the cooling load is high, for example at start-up or during large gathering and periods of direct.

GIN-ION BLUE FILTER
This filter is treated with a positively charged silver ion (In Japanese, 銀Gin translates as silver) which efficiently draws viruses onto its surface and decomposes up to 99.9% in 2 hours. On top of that, this filter can deactivate bacteria and inhibit fungal growth on its surface to improve the quality of indoor air for a healthier lifestyle. The filter delivers consistent performance for around a year if filter is cleaned once every 2 weeks.

LOW/HIGH VOLTAGE SHIELD
All electrical components in indoor and outdoor units are designed for extreme durability. The printed circuit boards can easily handle large variation of voltage (150V-440V) and increase operation durability.

REMOVABLE DRAIN PAN
The drain pan can be removed easily without any assembly, made it easy for maintenance. It reduces cleaning time dramatically and ensures a perfect finish.

SMART CONTROL (BUILT IN)
The Smart Control turns a smartphone into a remote controller which can be used inside or outside your home (GO DAIKIN App). Together it gives you full control such as start/ stop, operation mode and set temperature as well as advanced features like weekly scheduling. It allows you to monitor your system to ensure it is performing as desired.

*Free 2 years upgrade to Smart Control Pro upon first successful pairing to network adaptor (AWM61A01). Click to learn more about subscription plan.

3 YEARS WARRANTY INVERTER PROMOTION!*
Designed for durability and component quality, the units come with 5 years warranty for compressor and 3 years warranty for general parts.

*Click here to learn more on the Daikin extended warranty promotional campaign 2025 terms and conditions.

Technical Specifications
FTKF-C Series
Indoor		FTKF50CV1MF
Outdoor		RKF50CV1M
Specifications / Model name
Type		Inverter
Horsepower	(hp)	2.0
Refrigerant		R32
Rated Cooling Capacity (Min-Max)	(Btu/h)	18,000 (5,200-18,500)
Rated Power Consumption (Min-Max)	(W)	1,880 (380-1,950)
Rated Running Current	(A)	8.24
CSPF	(Wh/Wh)	5.02
Energy Rating		4 star
Air Flow Rate	(CFM)	430
Power Supply	(V/Ph/Hz)	220-240/1/50
Sound Pressure Level - Indoor (H/L/SL)	(dBA)	42/39/32/29
Dimension - Indoor (H x W x D)	(mm)
Dimension - Outdoor (H x W x D)	(mm)	615 x 845 x 300
Unit weight - Indoor	(kg)	9.5
Unit weight - Outdoor	(kg)	33
Copper Pipe Size - Liquid	(mm)	6.4
Copper Pipe Size - Gas	(mm)	12.7
Heat Exchanger		Hydrophillic Blue Fin
Controller		Wireless / Wired
*Wired Model DO NOT Have Built-In Wi-Fi

Standard installation inclusive upto 10 feet copper hose, for normal
residential / office unit installation, surcharge may apply should special
installation required.

Mr Chou
012-6302908

Barter Corner
Tel : 1700-81-5236
Email : bartercorner@yahoo.com

Barter Corner

About Barter Corner

Address

Website
