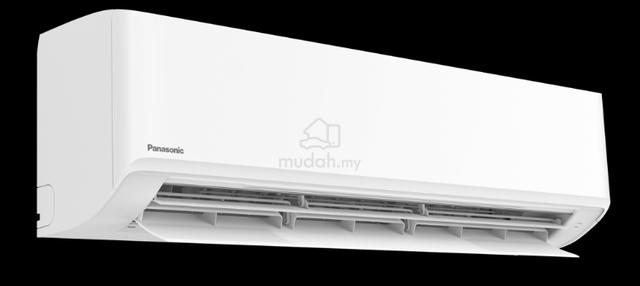

Panasonic PN24XKH-1 2.5HP Aircond w Installation

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort
Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.
*BIG FLAP is applicable to CS-PN9WKH-1 and CS-PN12WKH-1. AEROWINGS is applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1.

Features
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

Comfort Cooling Environment for Your Needs
Long Airflow with Big Flap
Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-PN9WKH-1 and CS-PN12WKH-1 only.

Stay Cool with Faster, Further Airflow
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1 only.

Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Calm and Peaceful Environment with Quiet Mode
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Environmentally Friendly R32 Refrigerant
Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

Fits Perfectly Anywhere
Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.

Convenient Control at Your Fingertips
The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

Specs
CS-PN24XKH-1_CU-PN24XKH-1
Model Name PN24XKH-1
Cooling Capacity (kW) 6.85 kW
Cooling Capacity (Btu/h) 23,400 Btu/h
EER (Btu/hW) 10.68 Btu/hW
EER (W/W) 3.13 W/W
CSPF (W/W) 3.36 W/W
Voltage (V) 230 V
Current (A) 9.7 A
Power Input (W) 2,190 W
Moisture Removal (L/h) 3.9 L/h
Moisture Removal (Pt/h) 8.2 Pt/h
Indoor Unit Air Circulation 20.5 m³/min (724 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo) 47/42 dB(A)
Indoor Unit Dimensions (H x W x D) (mm) 295 mm x 1,040 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch) 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Net Weight 12 kg (26 lb)
Outdoor Unit Air Circulation 40.3 m³/min (1,420 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo) 55 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm) 619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch) 24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight 41 kg (90 lb)
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length) 7.5 m
Pipe Extension (Maximum Pipe Length) 30 m
Pipe Extension (Maximum Elevation Length) 20 m
Pipe Extension (Additional Refrigerant Gas*) 25 g/m
Power Supply Indoor
Sleep Mode Yes
Powerful Mode Yes
Soft Dry Operation Mode Yes
Quiet Mode Yes
Airflow Direction Control (Up & Down) Yes
Manual Horizontal Airflow Direction Control Yes
Odour Removing Function Yes
Removable Washable Panel Yes
24-Hour ON & OFF Real Setting Timer Yes
LCD Wireless Remote Control Yes
Wired Remote Control Yes (Optional)
Random Auto Restart Yes (32 Restart Patterns)
Blue Fin Condenser Yes
Long Piping (max.) 30 m
Top Panel Maintenance Access Yes
Note
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
