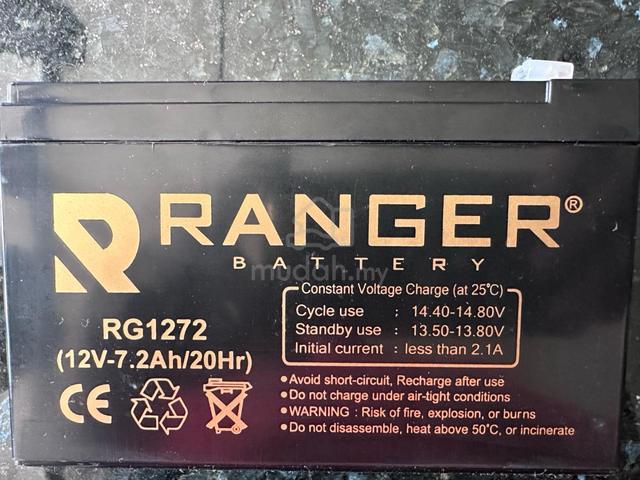

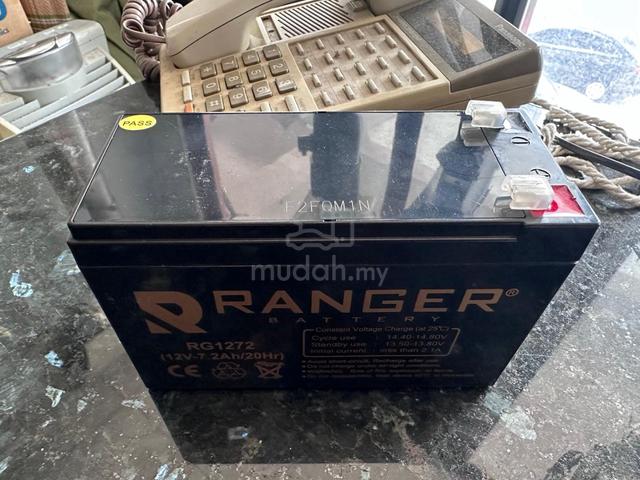

Battery Rechargeable 12V 7.2Ah Maint Free

12720 F2 is a general purpose battery with up to 5 years of standby
service.

This 12V 7.0AH battery fits in a variety of applications, ranging from alarm
systems to mobile scooters,
Autogate,cctv UPS BAckup Power supply.

Rechargeable, highly efficient, leak proof and maintenance free

Specifications:

Cells Per Unit 9

Voltage Per Unite 12V

Capacity 7.2Ah

Weight (kg) Approx 2.40kg (5.29 lbs)

Maximum Discharge Current 100A/150A (5sec.)

Internal Resistance Approx. Approx. 23mohms

Operating Temperature Range Discharge: -15 C thru 50 C (5 F thru 122
F)
Charge: -15 C thru
40 C (5 F thru 104 F)
Storage: -15 C thru
40 C (5 F thru 104 F)

Nominal Operating Temperature
Range 25 C plus/minus 3 C (77 F
plus/minus 5 F)

Float Charging Voltage 13.5 to 13.8 VDC/average at 25 C (77
F)

Recommended Maximum
Charging 2.1A

Equalization and Cycle Service 14.4 to 15.0 C VDC/unit average 25 CF (77
F)

Self Discharge It should be more than 75% of
the capacity that
before storage after
stocked for 6 months at
ambient temperatureof 25 C
