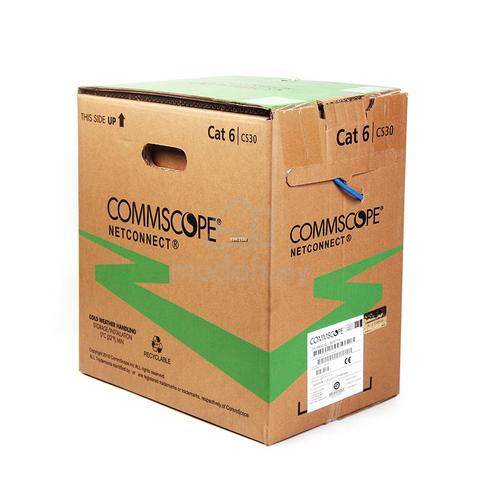

Commscope CAT6 network cable UTP

COMMSCOPE CS30 CAT6 CABLE UTP
1427071-6 | CS30CM BLU C6 4/24 U/UTP RIB 305M [WHATAPP: O12:6030:572]

Product classification
Regional Availability Asia | Latin America
Portfolio NETCONNECT®
Product Type Twisted pair cable
General Specifications
Product Number CS30CM
ANSI/TIA Category 6
Cable Component Type Horizontal
Cable Type U/UTP (unshielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Blue
Pairs, quantity 4
Transmission Standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
Dimensions
Cable Length 304.8 m | 1000 ft
Diameter Over Insulated Conductor 0.909 mm | 0.0358 in
Diameter Over Jacket, nominal 5.41 mm | 0.213 in
Conductor Gauge, singles 24 AWG
Electrical Specifications
Characteristic Impedance 100 ohm
dc Resistance Unbalance, maximum 5 %
dc Resistance, maximum 9.38 ohms/100 m | 2.859 ohms/100 ft
Delay Skew, maximum 45 ns
Dielectric Strength, minimum 1500 Vac | 2500 Vdc
Mutual Capacitance at Frequency 5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 68 %
Operating Frequency, maximum 250 MHz
Operating Voltage, maximum 80 V
Propagation Delay, maximum 536 ns/100m @250MHz
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
