Electric Fishing Reel - LEOBRITZ S500JP

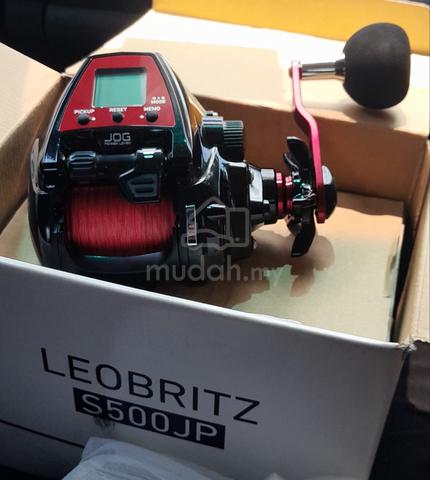

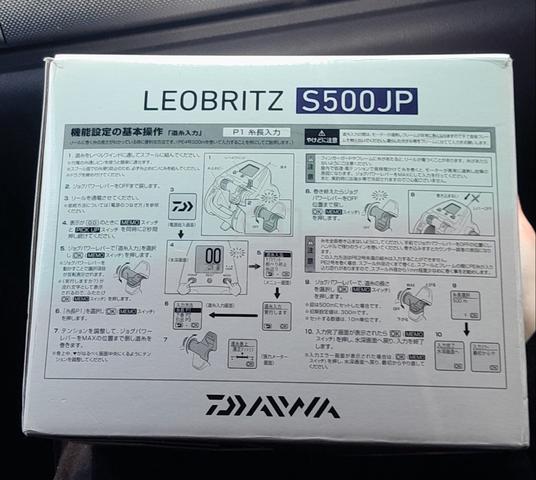

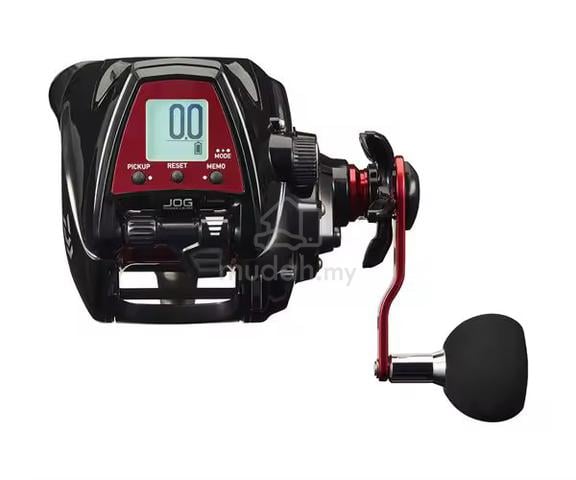

LEOBRITZ S500JP
Key Specifications

Gear Ratio: 3.6:1

Weight: 800g

Max Drag: 16 kg

Max Winding Power: 75 kg (JAFS standard)

Line Capacity: PE/Braid #4-500m, #5-400m, #6-300m

Core FeaturesJog Power Lever: Allows one-finger, variable-speed control without taking your hand off the rod.

Britz Motor Concept: A robust brushed motor delivering instant, high-torque winding power (1.2x stronger than older models).

Dot Screen Display: Clear visibility that supports polarized glasses and multiple language choices.

Fall Brake Dial: Quickly fine-tunes drop and fall speeds


Technical Specifications:🔋

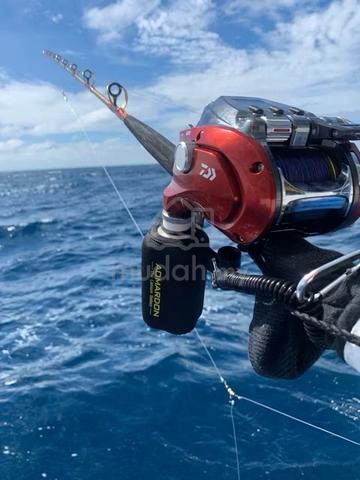

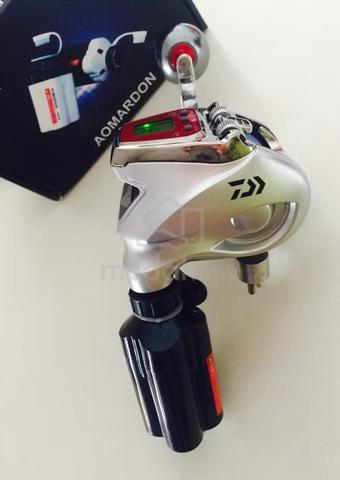

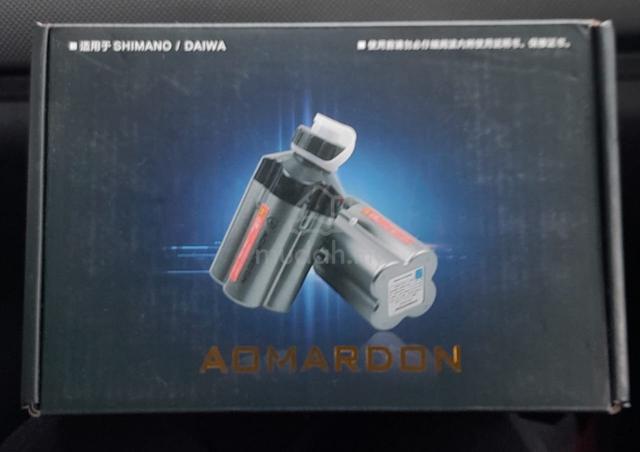

1.Portable Lithium Battery

Voltage Options: D.C. 14.8V

Capacity Options: Available in 3.5Ah (3500mAh), 5.5Ah (5500mAh), or 7.0Ah (7000mAh) indicators.

Dimensions: 44mm (Length) × 44mm (Width) × 114mm / 168mm (Height)

Weight Options: Approx. 280g / 380g / 405g (varies by capacity)

Weight Alternatives: Approx. 280g / 360g / 405g

Performance Examples:Water depth ~30m: Approx. 100 dropsWater depth ~50m: Approx. 70 dropsWater depth ~100m: Approx. 40 drops

Compatibility Limit: Recommended for electric reels with under 15kg of winding load capacity.

2. Dedicated Charger

Input Power: A.C. 220V 50/60Hz 50VA

Output Power: D.C. 16.8V — 2.0A / 3.0A

Charging Duration: Approximately 2.5 to 4 hours

Charger Dimensions: 115mm (Length) × 47mm (Width) × 34mm (Height)

Charger Weight: Approx. 165g
