EMAUX CF25 25ft2 Cartridge Filter(2union set 1.5")

Model: EMAUX CF25 25ft2
Warranty: 1 year

COMPACT AND LIGHTWEIGHT
For residential and semi-commercial pools

Specification
1) Tank Material : UV Resistant Plastic
2) Max operating pressure : 36 psi / 2.5 bar.
3) Max flow rate allow : 5.5m³/hr (24.20USgpm)(92lpm)
4) *CF25 filter area : 2.25m² (25sqft)*Based on cartridge filtration rate of 0.375 USgpm/ft².
5) Max temperature : 40°C (122°F).
6) 1.5″ (40mmØ) plumbing connection for maximum flow.
7) Number of cartridge media : 1nos. 183mmØ x 184.5mm(H).
8) High-quality oil-filled pressure gauge for easy inspection of the operation pressure.
9) Screw type air bleeder for easy removal of trapped air inside the filter tank.
10) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element.
11) Easy access 1.5″ (40mmØ) drain cap.
12) Diameter of the filter unit : 225mmØ.
13) Height of the filter unit : 445mm.
14) Clearance to remove Filter Top : 20.0″ (500mm) height from floor level.
15) Filtration Level : 20µ (better than sand filter level appro. 100µ)

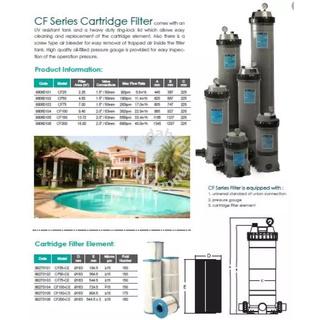

Product Features
The CF Series filters come with a UV resistant tank and a heavy duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. Also there is a screw type air bleeder for easy removal of trapped air inside the filter tank. High quality oil-filled pressure gauge is provided for easy inspection of the operation pressure.
