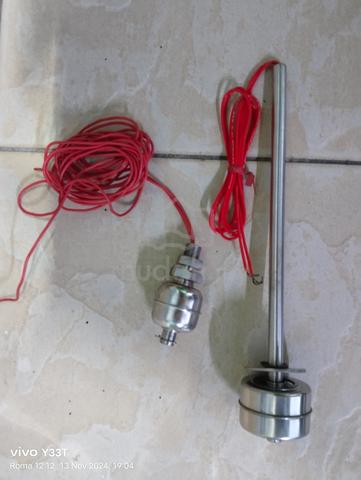

Float Sensor Switch Stainless Steel Water Level

Float Sensor Switch Stainless Steel Water Level Sensor Switch Single Ball Water Pump Controller

This is a mini stainless steel float switch,contains no for mercury.

Light weight and simple working principle,high reliability.

This float switch is a device used to sense the level of liquid within a tank,

the switch may activate a pump,an indicator,an alarm,or other device.

This float switch is a simple structure,easy installation liquid level controller.

It does not have a complex circuit,will not be disturbed,as long as the material selection,

liquid,pressure or temperture can be used in any environment.

The versatility of this vertically monted sensor means that it can be installed either at the top

or base of your tank,depending on whether you for wish to detect the water's rise or fall.

The float level switch is widely used in electronic,electrical,chemical,water treatment,

drainage and other walks of life level control and alarm



Specification:

Material: Stainless Steel

Color: Silver



Max Contact Rating: 10W

Max switching voltage: 110V DC

Max switching current: 0.5A

Max breakdown voltage: 220V DC

Max carry current: 1A

Max contact resistance: 100mΩ

Max temperature: -30~+125°

Thread Dia(Approx): 10mm

Cable Length: Approx 350mm/13.78"

Size: 6x2.6cm/2.36x1.02inch
