Garmin Echomap UHD 62CV - Marine GPS -C/W GT-24UHD

GARMIN ECHOMAP UHD 62CV - ( RM 4,180.00 )
GARMIN ECHOMAP UHD 62CV + MARINE MAP - ( RM 5,220.00 )



1️⃣year Warranty by Garmin Malaysia🇲🇾

Garmin Reseller Plaza Low Yat
UG-K055, Plaza Low Yat, UG Floor, No.7, Off Jalan Bukit Bintang
55100 Kuala Lumpur,
Wilayah Persekutuan Kuala Lumpur

Tel/Whatsapp: 6Show contact number
Daily Business Hour : 10.30am - 9pm ( Mon – Sun )

WhatsApp : https://api.whatsapp.com/send?phone=6Show contact number





📌General
✅Physical Dimensions: 21.8 x 13.0 x 6.2cm
✅Display Size: 13.7x7.7cm; 15.2cm diagonal: 6" inch
✅Display Resolution: 480 x 800 pixels
✅Display Type: WVGA display
✅Weight: 0.7 kg
✅Water Rating: IPX7
✅Power Consumption: 12W
✅Antenna: Internal or External over NMEA 2000
✅Mounting Options: Bail or Flush
✅Receiver:5 HZ



📌Maps Feature
✅Preloaded Worldwide Basemap
✅External Memory Storage: 1 MicroSD Card; 32GB Max Size
✅5000 Waypoints
✅100 Routes
✅50,000 Points Track Log
✅50 Saved Tracks



📌Outdoor Recreation Feature
✅Tide Tables



📌ChartPlotter Feature
✅Garmin Sonar Compatible
✅Supports AIS (tracks target ships position)
✅Supports DSC (displays position data from DSC-capable VHF radio)
✅Sailing Features



📌Sonar Features & Specifications
✅Dual-Frequency (50/200 kHz) Sonar capable
✅Dual-Beam (77/200 kHz) Sonar capable
✅Transmit Power 500 W (RMS) / 4,000 W (peak to peak)
✅CHIRP Sonar Technology (Built-in)
✅ClearVü: Yes with CHIRP (built-in)
✅SideVü
✅Maximum Depth: 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
✅Bottom lock (shows return from the bottom up)
✅Water Temperature Log and Graph
✅Sonar Recording
✅Sonar History Rewind

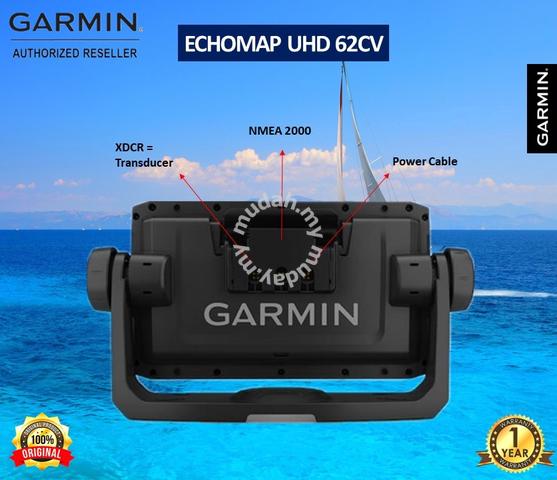

📌Connections
✅NMEA 2000® compatible
✅Transducer pin numbers: 4
✅NMEA 0183 input ports: 1
✅NMEA 0183 output ports: 1
✅Video input ports
✅Video output ports
✅Wireless connectivity
✅Garmin ActiveCaptain App



📌Garmin GT24UHD-TM

📌Spectification
✅Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz)
✅Power: CHIRP Traditional 350 W; ClearVü 350 W
✅Maximum Depth: CHIRP 800 ft.; ClearVü 200 ft.
✅Depth and Temperature
✅8 PINS
✅20 ft. Cable Length
✅Supported Deadrise/Transom Angles :0°-70°degree transom



in the Box?

✔️ECHOMAP UHD 62cv
✔️GT24UHD-TM Transducer
✔️Power/Data Cable
✔️Tilt/Swivel Mount with Quick Release Cradle
✔️Flush Mount
✔️Protective Cover
✔️Hardware
✔️Documentation
