Hisense Portable Aircond

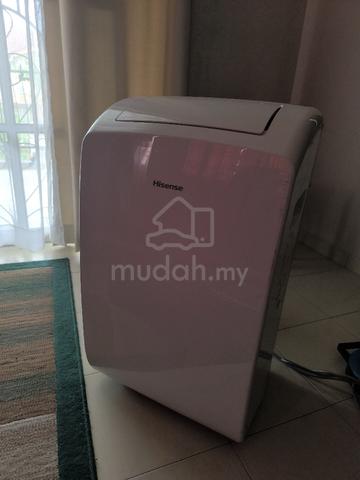

This chassis confirms the model: it is the Hisense AP09KVG (1.0 HP) portable air conditioner, not the 1.5 HP unit.

The 1.5 HP model (AP12NXG) uses a wider 43 cm body with a broad, centered vent, whereas this curved, compact 30 cm tower body with the top flap louvre is the AP09 series.

Official Specifications (Hisense AP09KVG)

FeatureSpecificationModel NumberAP09KVG (Production Code: K94ETJK)Horsepower1.0 HPCooling Capacity9,000 BTU/h (~2,640 W)RefrigerantR32 (or eco-batch R290 depending on run)Recommended Room Size10 – 16 m² (approx. 110 – 170 sq. ft.)Power Supply220–240V ~ 50 Hz, 1 PhaseCooling Power Input~980 W – 1,010 WRated Current4.9 AAirflow Volume280 m³/hNoise Level (High / Low)50 dB(A) / 48 dB(A)Operating ModesCool, Dry (Dehumidify), Fan OnlyFan Speeds2 Speeds (High / Low)Dimensions (W × H × D)300 mm × 670 mm × 330 mmNet Weight21.4 kg

Key Difference vs. the 1.5 HP (AP12NXG)

The 1.5 HP (AP12) pushes 12,000 BTU/h and is noticeably bulkier (433 mm wide vs. 300 mm, weighing over 25 kg).

The unit shown is rated at 9,000 BTU/h (1.0 HP), making it suitable for a standard bedroom, home office, or small study space rather than an open living room.
