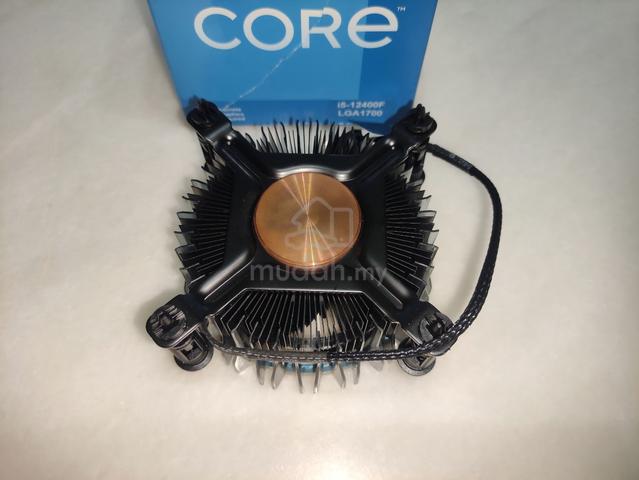

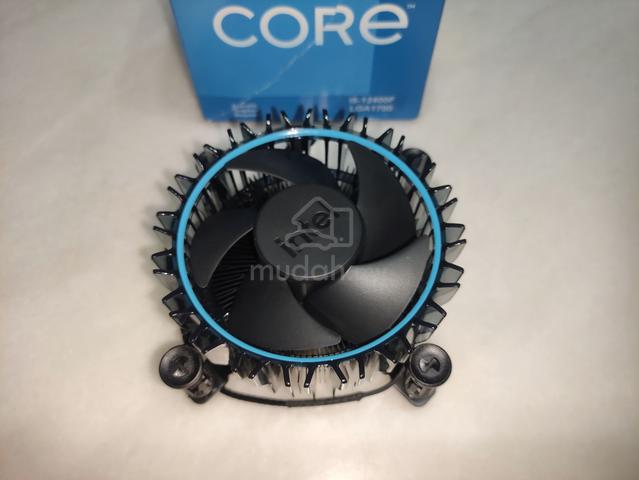

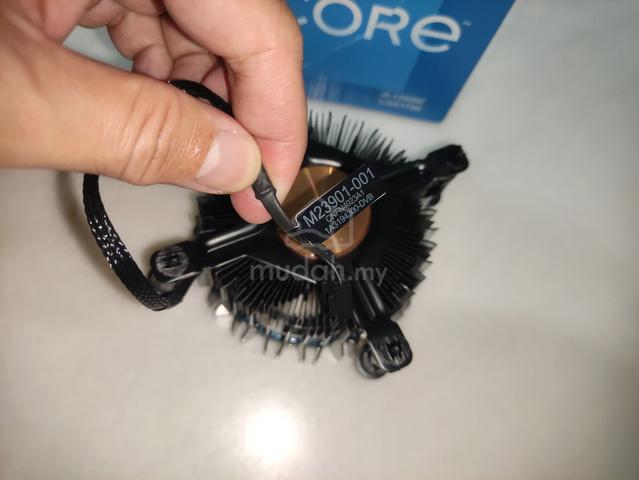

Intel CPU Heatsink Fan for Socket 1700 12th Gen

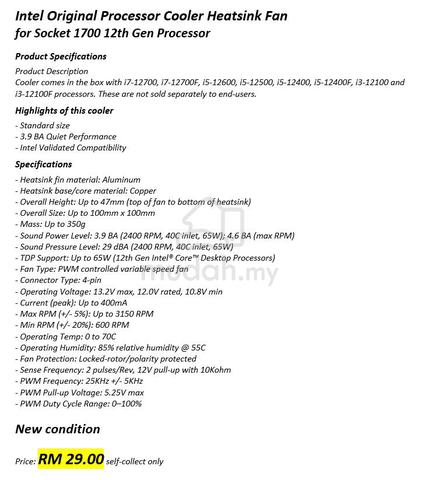

Intel Original Processor Cooler Heatsink Fan
for Socket 1700 12th Gen Processor

Product Specifications

Product Description
Cooler comes in the box with i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100 and i3-12100F processors. These are not sold separately to end-users.

Highlights of this cooler

- Standard size
- 3.9 BA Quiet Performance
- Intel Validated Compatibility

Specifications

- Heatsink fin material: Aluminum
- Heatsink base/core material: Copper
- Overall Height: Up to 47mm (top of fan to bottom of heatsink)
- Overall Size: Up to 100mm x 100mm
- Mass: Up to 350g
- Sound Power Level: 3.9 BA (2400 RPM, 40C inlet, 65W); 4.6 BA (max RPM)
- Sound Pressure Level: 29 dBA (2400 RPM, 40C inlet, 65W)
- TDP Support: Up to 65W (12th Gen Intel® Core™ Desktop Processors)
- Fan Type: PWM controlled variable speed fan
- Connector Type: 4-pin

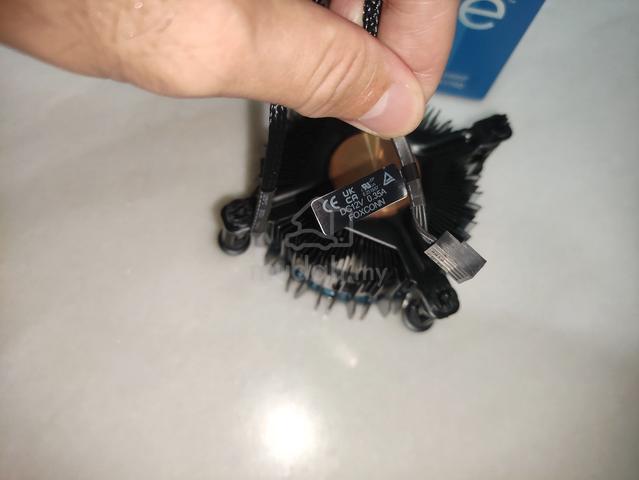

- Operating Voltage: 13.2V max, 12.0V rated, 10.8V min
- Current (peak): Up to 400mA
- Max RPM (+/- 5%): Up to 3150 RPM
- Min RPM (+/- 20%): 600 RPM
- Operating Temp: 0 to 70C
- Operating Humidity: 85% relative humidity @ 55C
- Fan Protection: Locked-rotor/polarity protected
- Sense Frequency: 2 pulses/Rev, 12V pull-up with 10Kohm
- PWM Frequency: 25KHz +/- 5KHz
- PWM Pull-up Voltage: 5.25V max
- PWM Duty Cycle Range: 0–100%

New condition

Price: RM 29.00 self-collect only

Contact: 0 1 8 2 9 6 8 2 7 3
COD: Bandar Kinrara BK2, Puchong
