Japan Original SUMITOMO Z2C fiber optic splicing

Japan Original SUMITOMO Z2C (HEAVY DUTY) fusion fiber optic splicing machine (NEW)

* The Z2C’s heater cycle time is only Approx.15 seconds(60mm Fiber protection sleeves) and a splice cycle of only Approx.6 seconds (Quick mode), the Z2C improves splicing efficiency and productivity dramatically, thereby reducing labor time and costs while increasing project and customer service turn-up.

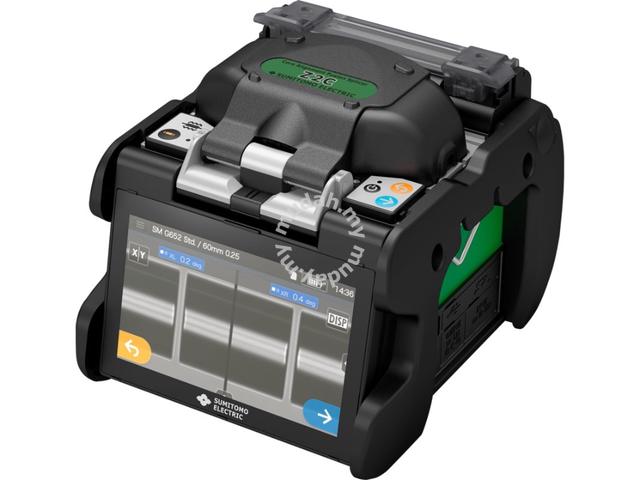

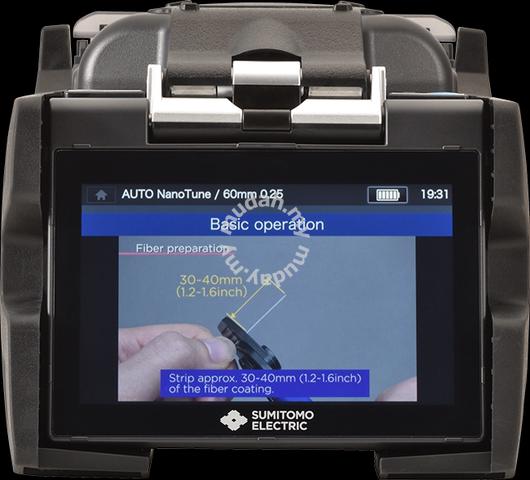

* The Z2C’s 5.0 inch LCD monitor with touch screen operation enables to confirm fiber images easily. The splicer can be operated by touching the icons on the screen. The working efficiency has improved.

* For added convenience and functionality, the Z2C design includes a multi-position monitor that automatically change its view to accommodate front-to-back and back-to- front viewing for a vast array of splicing applications. The splicer is RoHS compliant.

* Additionally, the splicer’s High–resolution Direct Core Monitoring (HDCM) image processing software,is used to perform core alignment and estimates splice loss for creating low-loss optical fiber splices with typical splice loss of less than 0.02dB for single-mode fiber and less than 0.01dB for multimode. Like other Sumitomo splicers, the Z2C is manufactured with durable metal rather than plastic materials predominantly used in the industry.

• Compact and Lightweight with only 2.0 kg weight including battery.
• Ultra fast splicing (6 sec.)
• Ultra fast heating (15 sec.)

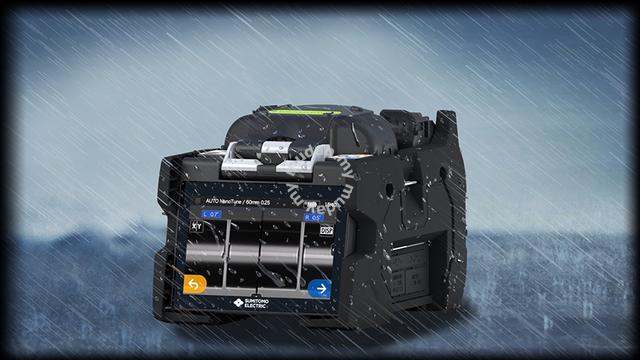

• Dust-free, water resistant and shock-proof.
• Touch-screen operation
• Remote support via internet
• Upgrades software via internet

Package Includes
1. Sumitomo Z2C Fusion Splicer
2. Sumitomo FC-6S-C Fiber Cleaver
3. Sumitomo BU-16 Original Battery
4. Sumitomo Fiber Stripper
5. Sumitomo CC-82 Carry Case
6. Sumitomo ADC-16 AC Adaptor
7. Sumitomo ER-10 Spare Electrode
8. AC Power Cord PC-AC5
9. Splice Cooling Tray
10. Instruction Manual
11. Inspection Certificate
