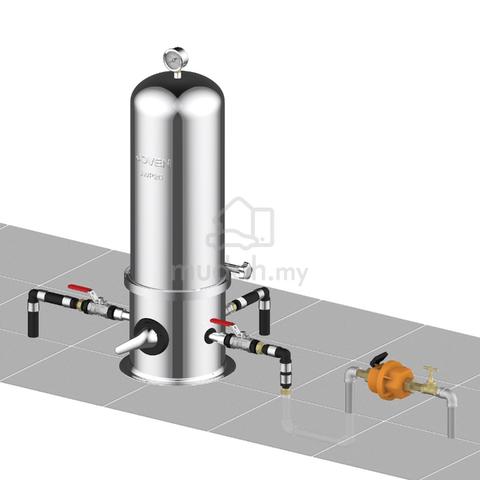

JOVEN Outdoor Water Purifier JWP20

Innovative Features

Point-Of-Entry (POE) Outdoor Water Filter
Durable & High Efficiency
2-Layer 5 Micron Pleated Filter Cartridge
Removes Dirt and Sediment
3 Function Multi-Valve

Accessories

2-Layer 5 Micron Pleated Filter Cartridge
Water Pressure Gauge

Safety Features

SUS 304 Stainless Steel Housing
Steel Clamp Plate for Tight-Seal

INNOVATIVE FEATURES
Cleaner Water With High Efficiency Outdoor Water Filter

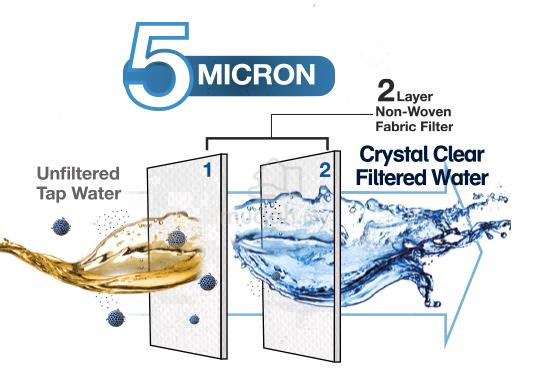

5 Micron Pleated Filter Cartridge Technology
The JOVEN JWP20 is a highly efficient Point-Of-Entry (POE) outdoor filter which comes with a 2-Layer 5 Micron Pleated Filter Cartridge technology which efficiently removes the harmful components from incoming water supply such as Dirt and Sediment.

JPW200 High Efficiency icon

Long Life Cartridge
Long-Life Pleated Filter Cartridge

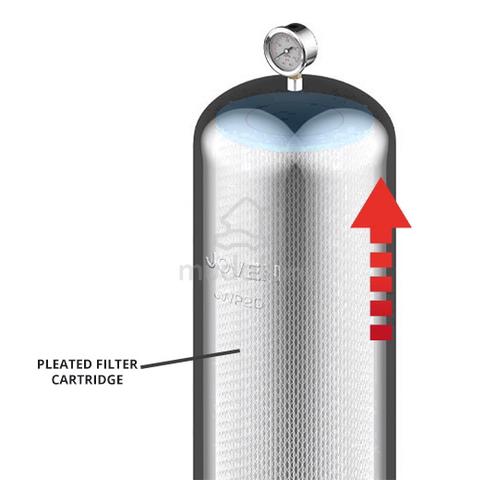

2-Layer 5 Micron Pleated Filter Cartridge
2-Layer 5 Micron Pleated Filter Cartridge ensures low pressure drop and high filtration area thus, ensuring higher efficiency and longer durability.

JPW200 Long Lifespan

Cleaner and Healthier Water For Your Family
Filtering your incoming water from the mains will remove Dirt and Sediment resulting in cleaner water for your household chores such as general washing and cleaning.

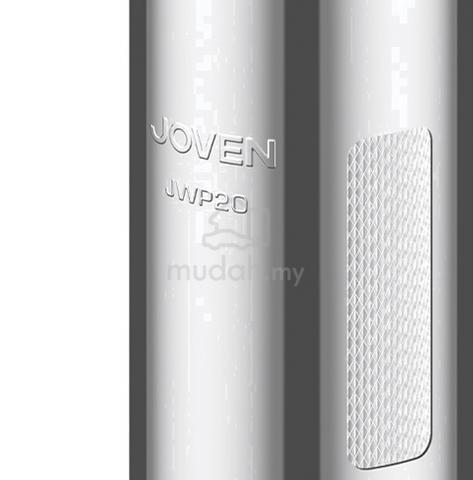

SUS304

Stainless Steel Housing
Ergonomic design that can withstand harsh outdoor conditions for better durability and rust free body and water.
Stainless Steel Housing Icon

Easy Selection Mode & Backwash System For Periodic Cleaning
3 function multi-valve lever enables you to select between ‘Filter’ and backwash mode of ‘Wash’ or ‘Rinse’ for periodic cleaning.

Easy Installation

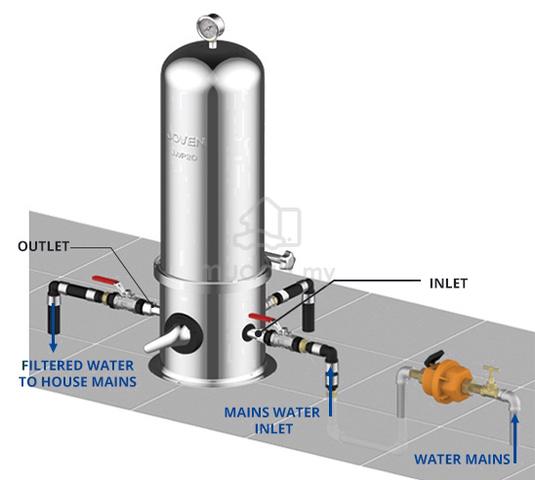

Just connect the Inlet and Outlet pipes to filter your incoming water from outdoor mains water system.

Safety
SAFETY FEATURES
NSF Certified Cartridge Material
High quality 2-Layer 5 Micron pleated fabric that complies to food and sanitisation safety standards (NSF). Filter cartridge is required to be replaced periodically when water flow or taste is unsatisfactory.

JP200 Safety Features SUS304 icons

Accessories
ACCESSORIES
2-Layer 5 Micron Pleated
Cartridge With Easy Maintenance
Inner 2-Layer Pleated Cartridge with easy periodic backwash by selecting the 3 Function Multi-Valve and change of cartridge can be easily done by removing housing top.

Water Pressure Gauge
Indicates the mains water pressure.

0-10 bar / 0-150 psi

JP200 Accessories Instruction Manual
Instruction Manual
Local language included

JP200 Accessories Warranty Card
Warranty Card
Local product warranty included

Technical Specifications
TECHNICAL SPECIFICATION
JWP20 Technical Specs
Filter Cartridge
Long-Life 2-Layer 5 Micron Pleated Cartridge
Large Filter Surface Area 5.0m2 (Approx)

Pressure Gauge
Stainless Steel Oil Filled Type
0 to 16 bar (0-230 psi)

Max. Working Pressure
5.0 bar (75 psi)

Filtration Capability
Up to 5 Micron
High Flow & Low Pressure Drop

Water Temperature
15°C to 38°C

Casing
Weather Resistance & Rust-Free SUS304 Housing

Connections
3/4” BSP Inlet / Outlet
1/2” BSP Backwash Outlet

Dimensions
322 x 313 x 752 mm

Weight
9.7 kg
