Joyo JP-02 10 Channel Output Guitar Effect Pedal P

Joyo JP-02 10 Channel Output Guitar Effect Pedal Power Supply 2 With Adapter (JP02 JP 02)

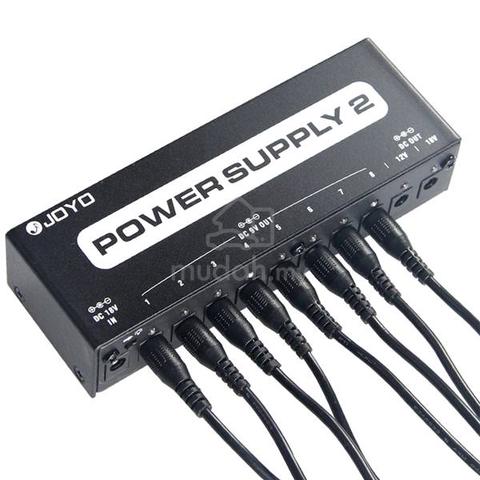

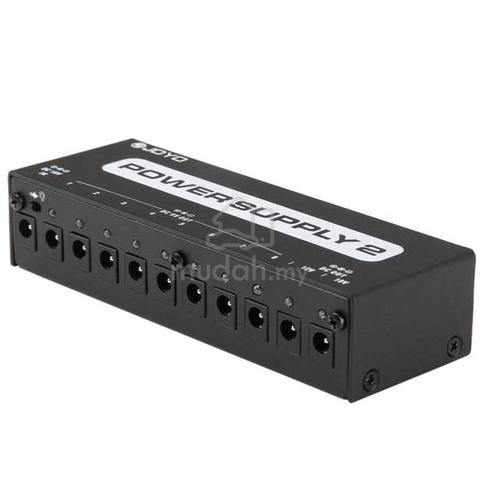

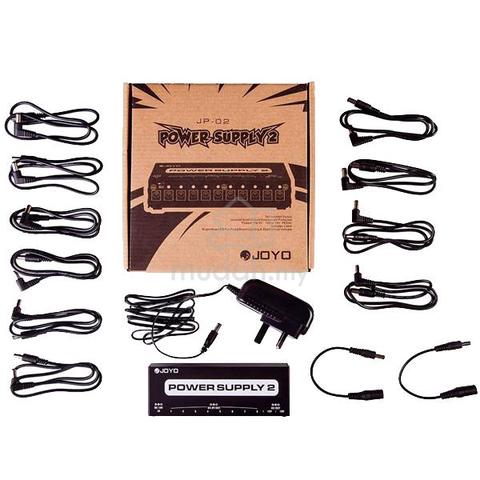

JOYO JP-02 Power Supply - 10 filtered outputs each with an isolated short circuit & current protection. Version 3. 00 JP-O2 filtered 10 x power supply 2 from JOYO technologies. A power supply that now adds more power outputs with extended power output ratings. Built-in a rugged steel casing and now featuring a new slim design to fit almost any existing pedalboard configuration and all necessary power link cables included.



The new JP-02 feature the following power options, all isolated short circuit & over current protection of a DC 9 volt power output with EACH output of 100mA. Suitable for most analog 9 volt effects with center negative polarity. (Check the back of your pedal if you are not sure!). Also DC 9 volt power output but with a maximum output of 500mA, which is suitable for many digital effects as well when more power is required for other units on the board. Output 9 gives a DC12 output, the maximum output current is 100mA and is used for effects requiring 12 volts of power. Output 10 gives a DC18 output, the maximum output current is 100mA for effects or other things that carry this rating. All outputs are fully regulated and offer Isolated short circuit protection, meaning if one output is overpowered beyond the power rating for any reason, all other outputs will not be affected.

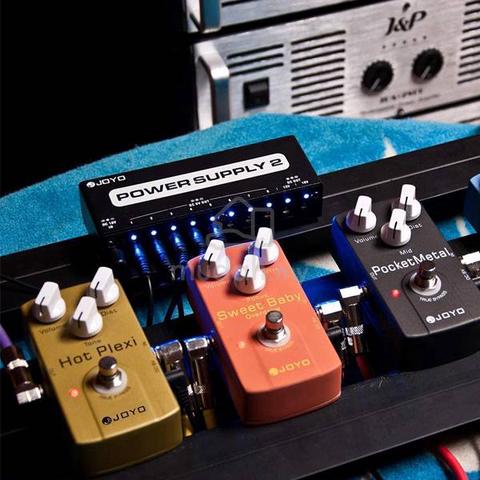

Also featuring Blue LED's at every output. Great for dark stages and gives your board a nice blue glow.
