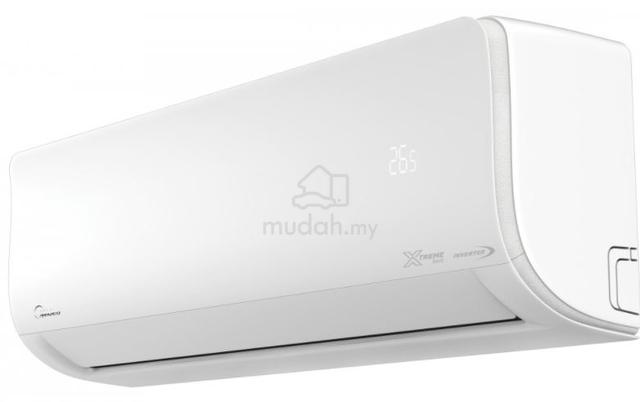

MIDEA 1.5HP INVERTER Aircond MSXS13CRDN8

=====Features=====
=====Features=====
R32 Refrigerant
Inverter – Energy Saving
iECO Mode
Air Magic
Flash Cooling
Low Noise
Smart Diagnosis
Cold Catalyst Filter
Thermo Static Technology
Diamond Cabinet
Follow Me
WIFI Control (Optional)
2 years general warranty
5 years compressor warranty

=====Specifications=====
General
Type Wall Mounted
Performance
Power Supply (V-Hz-Ph) 220-240V~ ,50Hz, 1Ph (Power supply to indoor)
Cooling Capacity (Btu/h) 12,000 (5,865-13,231)
Power Consumption (W) 1,030(408~1,217)
Running Current (A) 4.48(1.77~5.29)
CSPF(Cooling seasonal performance factor) (Wh/Wh) 4.83
Energy Efficiency Star Rating 4
IDU Performance
Indoor air flow [cubic meter/h (cfm)] 600 (353)
Indoor sound level (dB(A)) 39/33
IDU Spec
IDU Width (mm) 835
IDU Depth (mm) 208
IDU Height (mm) 295
IDU Packing Width (mm) 905
IDU Packing Depth (mm) 355
IDU Packing Height (mm) 290
IDU Net/Gross Weight (Kg) 8.9/11.8
ODU Performance
Outdoor sound level (dB(A)) 53
ODU Spec
ODU Width (mm) 720
ODU Depth (mm) 270
ODU Height (mm) 495
ODU Packing Width (mm) 835
ODU Packing Depth (mm) 300
ODU Packing Height (mm) 540
ODU Net/Gross Weight (Kg) 21.7/23.7
Specification
Refrigerant charge (g) R32/440g
Design pressure (MPa) 4.3/1.7
Refrigerant Piping
Liquid side/ Gas side (mm/inch) Φ6.35/Φ9.52 (1/4"/3/8")
Max. refrigerant pipe length (m) 25
Max. difference in level (m) 10
Application
Connection wiring (Not included) 4x1.5 Square mm
Power supply wiring/Plug type 3x1.5 Square mm / No-plug
Thermostat type Wireless Remote Control (Wifi Control, Wired control optional)
