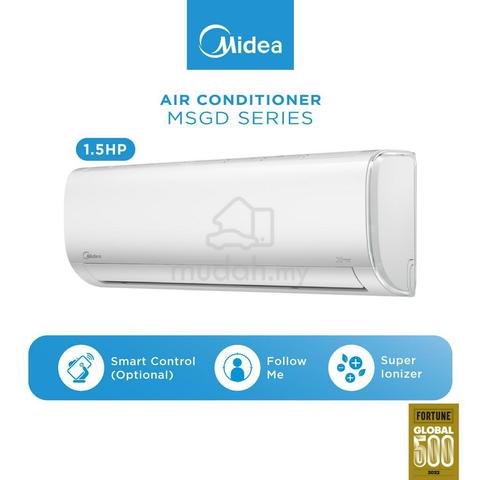

MIDEA MSGD12CRN8 1.5HP Xtreme Dura Non Inverter

=====Features=====
air magic
Flash Cooling
Prime Guard
Smart Control (Optional)
3 Star Energy Rating

1.5HP

Capacity

130-190sq.ft

Application area

2 Years (Full)

Warranty

5 Years (Compressor)

Warranty

3 Star

Star Rating

=====Specification=====
Indoor unit

Indoor air flow (H)
639 (376) m3/h(cfm)
Indoor Sound level (H L)
42.5/34/30 dB(A)

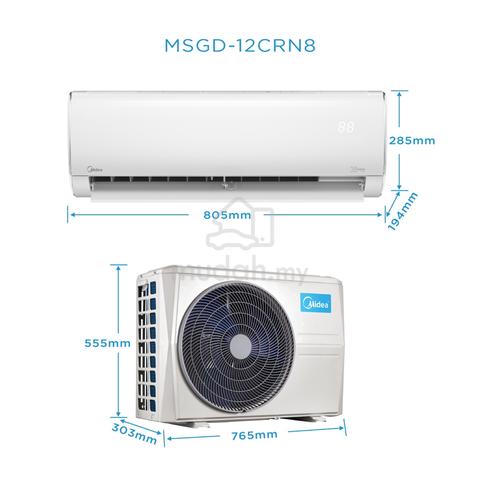

Dimension(W*D*H)
805x194x285 mm
Packing (W*D*H)
870x270x365 mm
Net Gross weight
8.3/10.6 Kg
Outdoor unit

Outdoor Sound level
52 dB(A)
Dimension(W*D*H)
765x303x555 mm
Packing (W*D*H)
887x337x610 mm
Net Gross weight
27.3/29.7 Kg
Refrigerant Charge
R32/430g
Design pressure
4.3/1.7 MPa
Refrigerant piping

Liquid side Gas side
Φ6.35/Φ9.52(1/4"/3/8") mm(inch)
Max. refrigerant pipe length
20 m
Max. difference in level
8 m
Misc

Cooling Capacity
12,200 Btu/h
Power consumption
1084 W
Running current
4.71 A
CSPF(Cooling seasonal performance factor)
3.45 Wh/Wh
Power supply
220-240V~,50Hz,1Ph (power supply to indoor)
Indoor-Outdoor connection wiring (Not included)
3x1.5 mm2
Power supply wiring(Not included wire)
3x1.5 mm2 / No plug
Thermostat type
Wireless Remote Control (Wifi control, Wire control optional)
