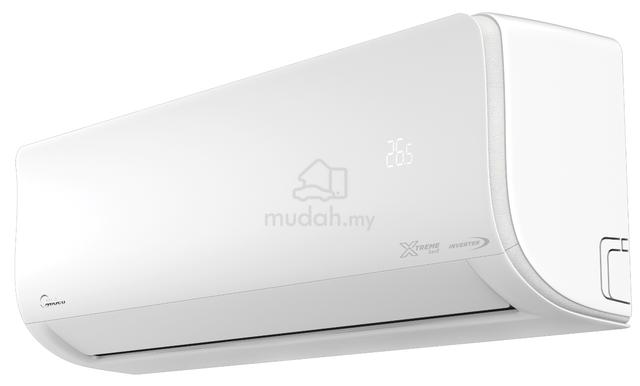

Indoor unit Indoor air flow (H) 1,090(641) m3/h(cfm) Indoor Sound level (H/L) 46/35 dB(A) Dimension(W*D*H) 1083x244x336 mm Packing (W*D*H) 1155x415x315 mm Net/Gross weight 13.6/17.3 Kg Outdoor unit Outdoor Sound level 60 dB(A) Dimension(W*D*H) 890x342x673 mm Packing (W*D*H) 995x398x740 mm Net/Gross weight 43.9/46.9 Kg Refrigerant Charge R32/1450g Design pressure 4.3/1.7 MPa Refrigerant piping Liquid side/ Gas side Φ9.52/Φ15.9(3/8"/5/8") mm(inch) Max. refrigerant pipe length 30 m Max. difference in level 20 m Misc Cooling Capacity 24,000(7,200~28,000) Btu/h Power consumption 2,250(420~3,200) W Running current 9.78(1.83-13.92) A CSPF(Cooling seasonal performance factor) 5.19 Wh/Wh Energy Efficiency Star Rating 4 Power supply 220-240V~,50Hz,1Ph (power supply to outdoor) V,Hz,Ph Indoor-Outdoor connection wiring (Not included) 5x2.5 mm2 Power supply wiring (No Plug) 3x2.5 mm2 Thermostat type Wireless Remote Control (Wifi control, Wire control optional)
Standard installation inclusive upto 10 feet copper hose, for normal residential / office unit installation, surcharge may apply should special installation required.
Mr Chou
Barter Corner Tel : 1700-81-5236 Email : *** Other Terms & Conditions: Warranty 1 year internal parts, 5 years compressor *** Payment option: - Cash On Delivery
