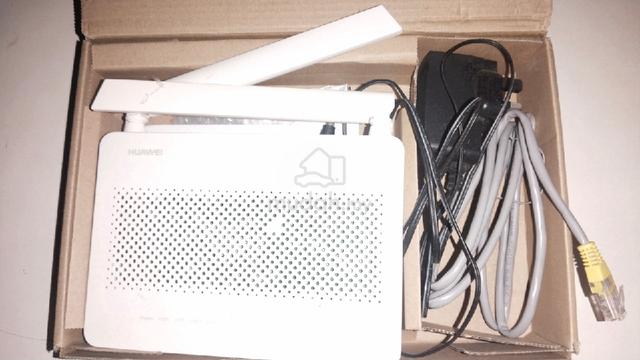

modem router huawei HG8145V5

The Huawei EchoLife EG8145V5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Model EchoLife EG8145V5
Dimensions (H x W x D) (without external antenna and pads) 30 mm x 155 mm x 105 mm
Weight About 220 g
NNI GPON
Optical connector SC/APC
UNI 1POTS+4GE+2.4GHz/5GHz Wi-Fi+1USB
Operating temperature 0°C to 40°C
Operating humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50/60 Hz
System power supply 12 V DC, 1.5 A
Static power consumption 5 W
Maximum power consumption 12 W
Indicators Power/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL/USB/WLAN/WPS
GPON port • Class B+
• Receiver sensitivity: -27dBm
• Overload optical power: -8 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF) of G.984.5
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password
authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
• Type B (single-homing&dual-homing)
POTS port • Maximum ringer equivalence number (REN): 4
• G.711A/μ, G.729a/b and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
Ethernet port • Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
Wi-Fi • IEEE 802.11 b/g/n (2.4GHz)
• IEEE 802.11 a/n/ac (5GHz)
• 2 × 2 MIMO (2.4GHz&5GHz)
• Antenna gain: 5 dBi
• WMM/Multiple SSIDs/WPS
• 2.4GHz&5GHz concurrent
• Air interface rate: 300 Mbit/s (2.4GHz), 867 Mbit/s (5GHz)

interested can Whatsapp JAson 0 1 1 1 7 1 9 6 8 3 6 8
