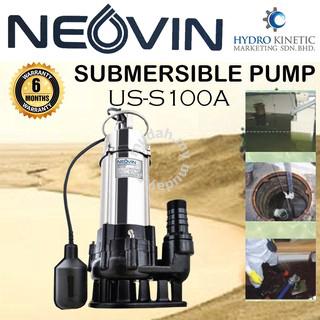

NEOVIN US-S100A AUTO SUBMERSIBLE SEWAGE WATER Pump

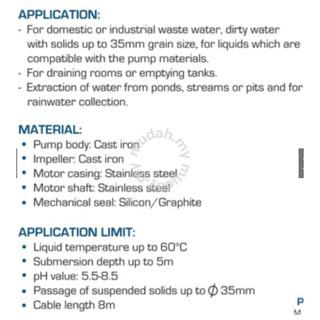

APPLICATION
For domestic or industrial waste water, dirty water with solids up to 35mm grain size, for liquids which are compatible with the pump materials
For draining rooms or emptying tanks.
Extraction of water from ponds, streams or pits and for rainwater collection.

MATERIAL
Pump body: Cast iron
Impeller: Cast iron
Motor casing: Stainless steel
Motor shaft: Stainless steel
Mechanical seal: Silicon/ Graphite

APPLICATION LIMIT
Liquid temperature up to 60°C
Submersion depth up to 5m
pH value: 5.5-8.5
Passage of suspended solids up to 35mm
Cable length 8m

SPECIFICATIONS
Model US-S100
Voltage 240V 50Hz
Phase single
Power 0.75kW / 1.0HP
Rated speed 2,850rpm
Max. head 15mtr
Max. flow 17m3/hour
Max. pressure 1.3bar
Max. fluid temperature 60C
Discharge diameter 50mm / 2"
Motor protection IP68
Insulation class B
Dimension L240 x W160 x H52.5mm
