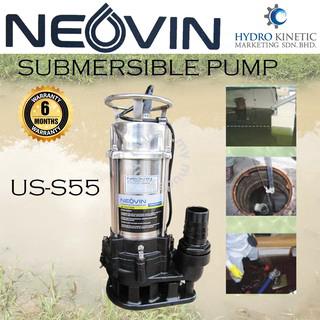

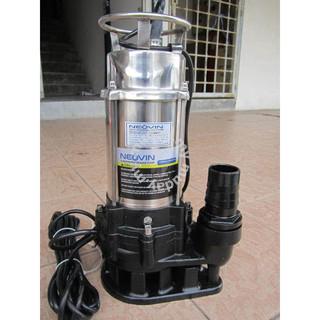

NEOVIN US-S55 SUBMERSIBLE SEWAGE Pump

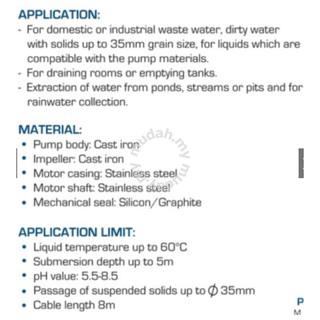

APPLICATION
For domestic or industrial waste water, dirty water with solids up to 35mm grain size, for liquids which are compatible with the pump materials
For draining rooms or emptying tanks.
Extraction of water from ponds, streams or pits and fro rainwater collection.

MATERIAL
Pump body: Cast iron
Impeller: Cast iron
Motor casing: Stainless steel
Motor shaft: Stainless steel
Mechanical seal: Silicon/ Graphite

APPLICATION LIMIT
Liquid temperature up to 60°C
Submersion depth up to 5m
pH value: 5.5-8.5
Passage of suspended solids up to 35mm
Cable length 8m
Dimension L240 x W160 x H50.5mm

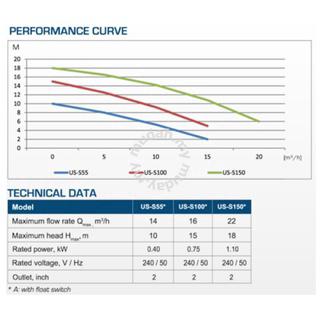

**Specifications**
Model US-S55
Voltage 240V 50Hz
Phase single
Power 0.40kW / 0.55HP
Rated speed 2,850rpm
Rated head 8mtr
Max. head 13mtr
Rated flow 7m3/hour
Max. flow 14m3/hour
Max. pressure 1.3bar
Max. fluid temperature 60C
Discharge diameter 50mm / 2"
Motor protection IP68
Insulation class B
