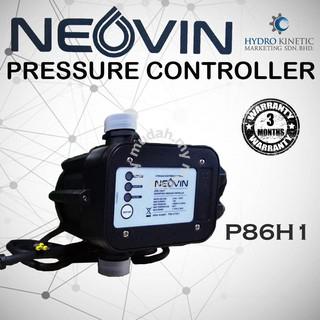

NEOVIN Water Pump PRESS CONTROLLER Switch P86H1.P

List-ID: 9753961414 Oct 09:22
3

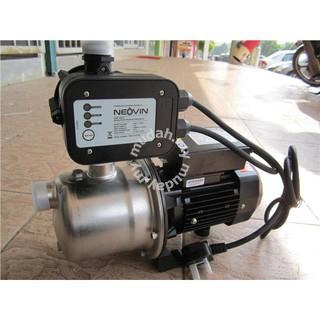

Neovin controller is used to automatically control the functioning of electric water pumps. It can guarantee the optimum control of electric pumps used in plumbing systems. Being an intelligent mix of hydraulic and electronic engineering, the control maintains both pressure and flow and controls the operation of the pump automatically. It needs no pressure tank as in the traditional systems. There are no plenum chambers to recharge and no irritating variation in pressure and in flow at the point of use. No adjustment or maintenance is required. It is absolutely dependable, durable and simple to install.

**Functioning**

The unit is programmed to perform all the pump control operations automatically. When particular operational breakdowns occur, such as water failure, obstruction of the suction pipe, etc. , the unit recognizes the breakdown and a red LED Failure lights up, at the same time a stop signal is sent to the pump to prevent damage caused by it working in the absence of water. After rectifying the cause of the failure the system to be restarted by pressing the Reset button.

**Specifications**

Model P86H1.P

Rated Voltage 240V

Max. Current 10A

Frequency 50Hz

Max. Power 1.1kW

Starting Pressure 1.5bar

Max. Pressure 1Mpa (10bar)

Max. Operating Temperature 60C

Joint Screw 1inch (25mm)

Protection Grade IP65

This controller comes pre-wired and plug top
