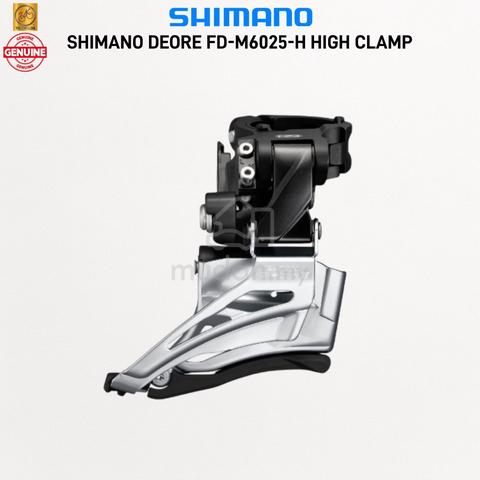

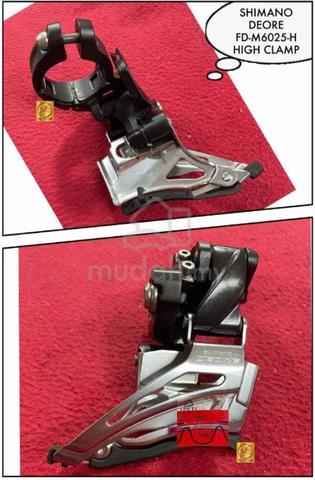

SHIMANO DEORE FD-M6025-H Front Derailleur Down

Specifications:

Series: Deore M6025H
Color: Black
Application: All Mountain, Cross Country
Gearing: 2x (combined with 10-speed)
Chainstay Angle: 66-69°
Chainline: 48.8 mm
Chainring Size (max.): 34/38 teeth
Capacity: 10 teeth
Cable Routing: top pull, dual pull
Movement: down-swing
Mount: low clamp, high clamp
Clamp Diameter: 34.9 mm with adapter 31.8 mm/28.6 mm
Compatibility: HG-X 10-speed chains

Features
~smooth shifting
~efficient cable routing
~stable function on full suspension bikes
~painted parallelogram, plated cage plates
~2 joint bushings (FD-M6025-E/L) or 4 joint bushings (FD-M6020) or 8 joint bushings (FD-M6025-E/H)

Contents
~1 x Shimano Deore FD-M6025H front derailleur
~1 x 28.6 mm adapter (only clamp model)
~1 x 31.8 mm adapter (only clamp model)

* E-type and direct mount versions are compatible with B-cranks with 3 mm outer chainlines.
* FD-M6020: Frames must be made for E-type mounts, retrofitting an E-type retaining plate is not possible.

Technical Information:
Outer Body Material: steel
Inner Body Material: aluminium
Cage Material: steel
