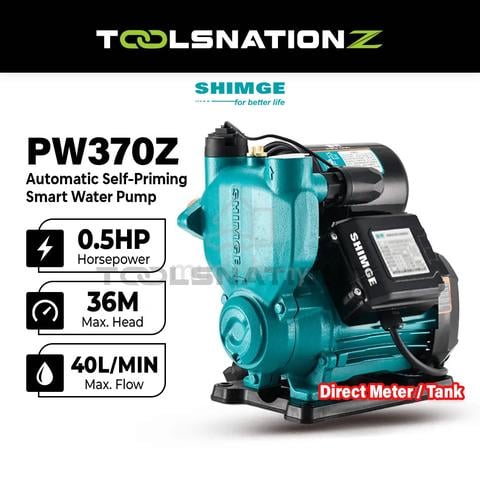

SHIMGE PW370Z Automatic Self‑Priming Booster Water

Type: Automatic self-priming booster pump (surface pump)
Power: 0.5 HP (0.37 kW)
Voltage: 240V single phase
Max water flow: ~40 L/min (2.4 m³/h)
Max pumping height (head): up to 36 m
Working head range: about 1–32 m
Max suction depth: 8 m
Pipe size: 1” inlet × 1” outlet

Main features

* Automatic water pressure boosting for house use
* Self-priming design (helps restart after minor air entry)
* Works with cold and hot water systems (liquid temperature up to 90°C)
* Lower noise design
* Intelligent control using flow sensor + pressure sensor to reduce frequent start/stop cycles
* Dry-run protection and scale-prevention functions (depending on configuration/version)

Common usage

* Increase house tap water pressure
* Water tank / water tower supply
* Well water pumping
* Solar water heater / hot water circulation systems
* Small domestic water transfer

Materials

* Cast iron pump body with stainless insert
* Brass impeller
* Aluminum motor casing
* Copper winding
