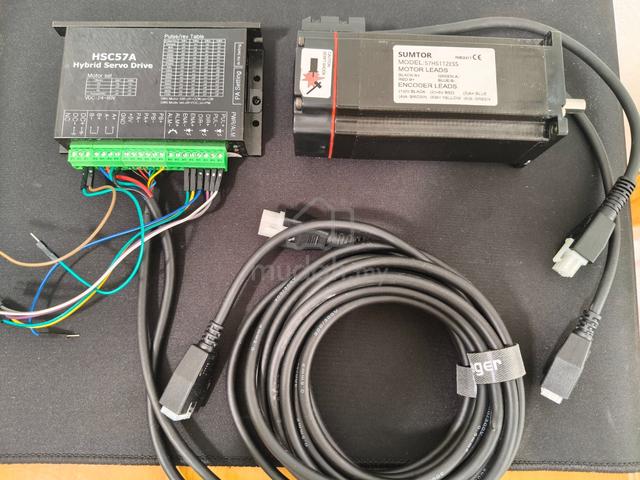

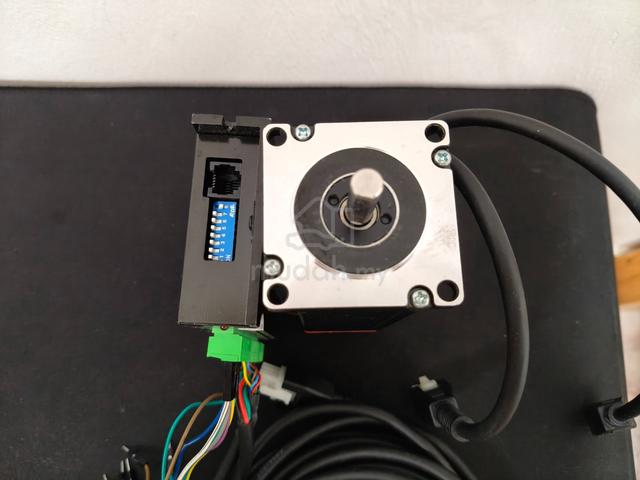

SUMTOR HSC57A Closed Loop Stepper Motor and Driver

Bought on January 2026. Used for my university final year project. Include the manual book in pdf form.


HSC57A Closed-Loop Stepper Motor Driver Specifications:

Model: HSC57A Closed-Loop Stepper Driver
Compatible with 2-phase closed-loop stepper motors
Compatible motor sizes:, NEMA 23 (57mm)
Input supply voltage: 24–80 VDC
Continuous output current: 0.5–8.0 A
Maximum pulse frequency: 200 kHz
Control modes: Position Control, Speed Control, Torque Control
Pulse/Direction interface (5–24V compatible)
Supports Differential & Single-ended input
Microstep resolution selectable:
400 (default), 800, 1000, 1600, 2000, 3200, 4000, 5000, 6400, 8000, 10000, 12800, 20000, 25600, 40000, 51200 pulses/rev
Encoder feedback supported (250–5000 line encoders)
RS232 tuning/debugging support
FOC (Field-Oriented Control) & SVPWM technology
Low vibration and low noise operation
Reduced motor heating
High positioning accuracy (±1 pulse)
Speed accuracy: ±2 rpm
Built-in protections: Over-voltage, Under-voltage, Over-current, Tracking error protection, Natural cooling
