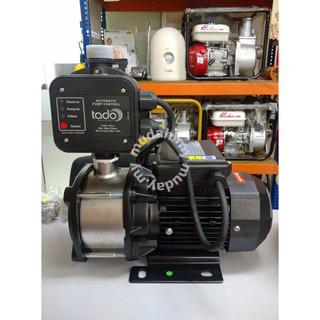

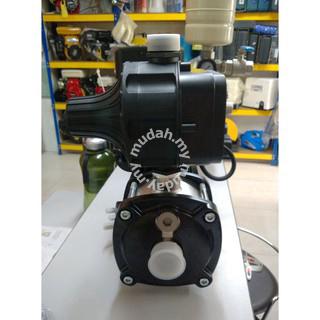

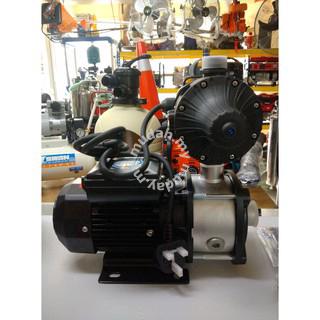

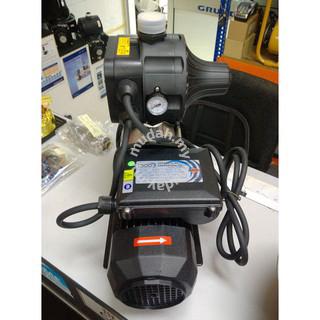

TADO YCM3-3 (0.5HP) WATER Pump(TSUNAMI) YCM3-3YPC8
List-ID: 9754638008 Apr 09:10
Description
Specification
FEATURES: - Horizontal construction, a threaded inlet and outlet for standard installation - With high quality mechanical seal, different friction couples will be selected for different medium - Stainless steel 304 for casing and NORYL for guide blade and impeller - Motor mounted with T1 thermal protector - Insulation class F, protection IP54 - 100% copper wired motor - Water treatment (water purification), industrial cleaning machine - Floors of pressurized water supply - High building boosting, water supply, garden sprinkler - Air-conditioning and cooling system - Aquaculture and other uses

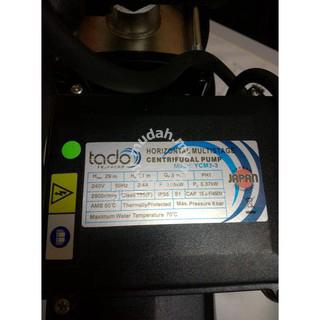

SPECIFICATIONS: - Model YCM3-3 - Input voltage 220-240V - Frequency 50Hz - Phase single - Power 0.37kW (0.5HP) - Current 2.5A - Speed 2900rpm - Max. capacity 59L/min - Max. head 30mtr - Max. pressure 8bar - Max. water temperature 60 Celsius - Connection inlet / outlet 1" x 1" (25mm x 25mm) - Pump body stainless steel - Impeller Noryl - Mechanical seal stainless steel - Heavy duty continuous work - Motor housing aluminium - Shaft stainless steel (SUS304) - Insulation class F - Protection IP54 - Cooling external ventilation - Weight 9kg **Warranty 1 year
Our company address: A-G-12, Jalan 3/33a Kepong Baru, 52100 Wilayah Persekutuan Kuala Lumpur.
Our consultation team and helpdesk👇👇 📲 Mr. Ken https://www.wasap.my/6 📲 Mr. Adam https://www.wasap.my/6
