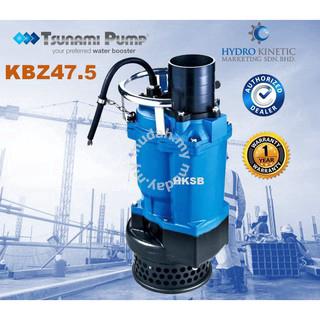

Tsunami KBZ47.5 (10.0HP) sub dewatering pump

Description
Model: KBZ47.5
Tsunami submersible drainage water pump with rigid cast iron body.
3phase

Features
The body of motor and pump is made of rigid cast iron for long lasting durability.
Greatly increase maximum submersion depth due to mechanical seal resistant to high pressure.
Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing.
Hermetically sealed motor equipped build-in thermal protection for the power below 15kW.
Applications
Civil engineering
Mines
Quarries
Coal ore
Slurries
Sewage treatment plants

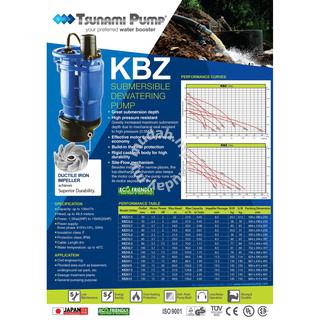

Specifications
Power 10 HP
Maximum Capacity 1400L/min
Maximum Head 40m
Discharge Size 4″ (100 mm)
Impeller Passage 11.5mm
Packaging Dimensions (H x L x W) 805mm x 365mm x 390mm
Packaging Weight 114kg
Pump Dimensions (H x L x W) 676mm x 330mm x 314mm
Pump Weight 114kg

Accessories Included
8m Power cable
