Turnigy Aerodrive 1050kv TR2213/20-1050 MOTOR

Turnigy Aerodrive
TR2213/20-1050
Brushless out runner motor.

Combined with a 10x6 E-prop this motor can push out over 1000g in thrust on a 3S1P configuration lipo.
Good for bigger foamies or parkflyers where about 150W is required.

Spec.
Kv: 1050rpm/v
Operating Current: 6A ~ 16A
Peak Current: 19A
Weight: 56g
Dimensions: 27.6 x 32mm
Shaft Size: 3.175mm

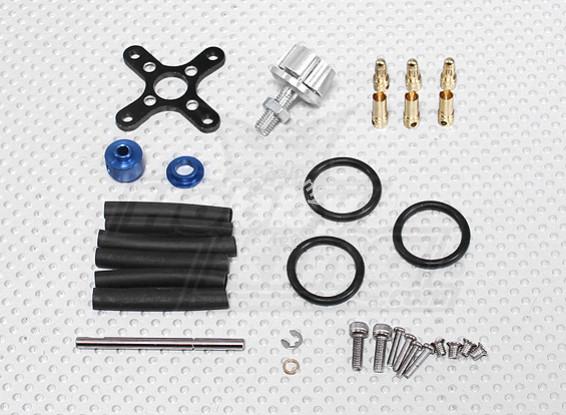

Kit includes full accessories, including gold bullet connectors, prop saver, mount, spare rubber rings, shrink tube and screws.

Performance Data
Voltage Current Prop Thrust
11.1V 8.6A 8040 538g
11.1V 13.7A 9050 810g
11.1V 16.7A 1060 650g

Kv(rpm/v)1050.00
Max Current (Motor) (A)19.00
Resistance (mh)0.00
Max Voltage (V)11.00
Power (W)0.00
Shaft A(mm)3.18
Length B (mm)30.00
Can Diameter C(mm)28.00
Can Length D(mm)17.00
Total Length E(mm)46.00
