USED Portable TIG Welding Machine ESAB

Connection of TIG torch, electrode and return cables: ET 1600HF
USED Portable Welding Machine for TIG

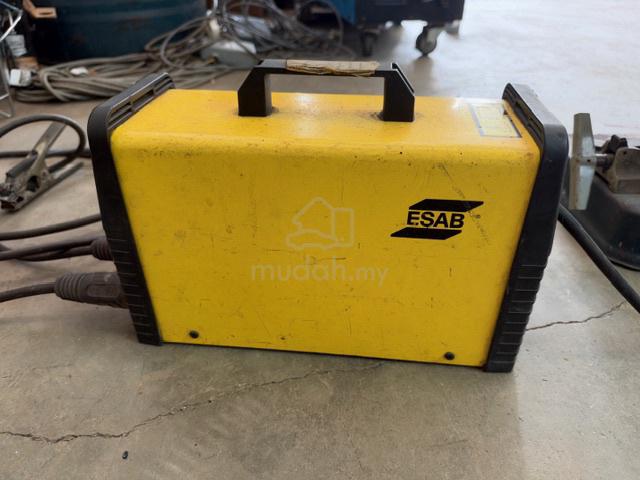

Brand: ESAB

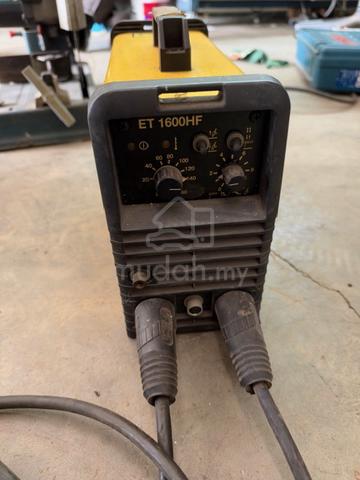

Model: ET 1600HF

The power source has two outputs - a negative [-] terminal (2) and a positive [+] terminal (3).

For MMA (SMAW) process the output to which the welding cable is connected depends on the type of electrode, please refer to electrode packaging for information relating to the correct electrode polarity.

For TIG (GTAW) process, connect the TIG torch power cable to the negative [-] terminal (2). Connect the gas inlet nut to the panel mounted gas outlet fitting (4). Connect the TIG torch trigger plug to the panel mounted remote receptacle (5).

Welcome for viewing & testing
Self collect from USJ 1, Subang Jaya

Kindly contact/WhatsApp Show contact number Rachel
