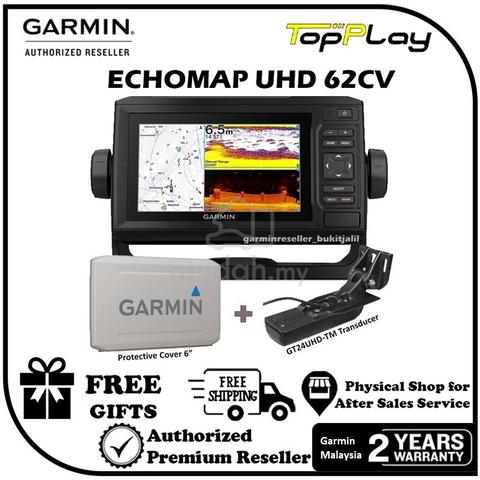

Garmin Echomap UHD 62CV - Fishfinder Marine Map

Pay us a visit Now at :
Garmin Kuala Lumpur Reseller,
UG K055, (Upper Ground Floor). Plaza Low Yat,
No.7, Jalan Bukit Bintang,
55100 Kuala Lumpur
Daily Business Hour : 10.30am - 9.30pm ( Sun - Mon)

REMARK : RM4180.00 - WITHOUT MARINE MAP PROMO PRICE
RM5220.00 - BUNDLE WITH MARINE MAP

2 years Warranty by Garmin Malaysia

#General
✅Physical Dimensions: 21.8 x 13.0 x 6.2cm
✅Display Size: 13.7x7.7cm; 15.2cm diagonal: 6" inch
✅Display Resolution: 480 x 800 pixels
✅Display Type: WVGA display
✅Weight: 0.7 kg
✅Water Rating: IPX7
✅Power Consumption: 12W
✅Antenna: Internal or External over NMEA 2000
✅Mounting Options: Bail or Flush
✅Receiver:5 HZ

#Maps Feature
✅Preloaded Worldwide Basemap
✅External Memory Storage: 1 MicroSD Card; 32GB Max Size
✅5000 Waypoints
✅100 Routes
✅50,000 Points Track Log
✅50 Saved Tracks

#Outdoor Recreation Feature
✅Tide Tables

#ChartPlotter Feature
✅Garmin Sonar Compatible
✅Supports AIS (tracks target ships position)
✅Supports DSC (displays position data from DSC-capable VHF radio)
✅Sailing Features

#Sonar Features & Specifications
✅Dual-Frequency (50/200 kHz) Sonar capable
✅Dual-Beam (77/200 kHz) Sonar capable
✅Transmit Power 500 W (RMS) / 4,000 W (peak to peak)
✅CHIRP Sonar Technology (Built-in)
✅ClearVu: Yes with CHIRP (built-in)
✅SideVu
✅Maximum Depth: 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
✅Bottom lock (shows return from the bottom up)
✅Water Temperature Log and Graph
✅Sonar Recording
✅Sonar History Rewind

Connections
✅NMEA 2000 Cable compatible
✅Transducer pin numbers: 4
✅NMEA 0183 input ports: 1
✅NMEA 0183 output ports: 1
✅Video input ports
✅Video output ports
✅Wireless connectivity
✅Garmin ActiveCaptain App

Garmin GT24UHD-TM
#Spectification
✅Frequency: CHIRP High Wide (150-240 kHz); UHD ClearVu CHIRP 800 kHz (760-880 kHz)
✅Power: CHIRP Traditional 350 W; ClearVu 350 W
✅Maximum Depth: CHIRP 800 ft.; ClearVu 200 ft.
✅Depth and Temperature
✅8 PINS
✅20 ft. Cable Length
✅Supported Deadrise/Transom Angles :0�-70�degree transom

in the Box?
✔️ECHOMAP UHD 62cv
✔️GT24UHD-TM Transducer
✔️Power/Data Cable
✔️Tilt/Swivel Mount with Quick Release Cradle
✔️Flush Mount
✔️Protective Cover
✔️Hardware
✔️Documentation
