Garmin GPSMAP 585 Plus - GPS Chartplotter

UNIT ONLY - RM 2,899.00


🆓FREE SD Card 4GB with Bluechart Map
🆓FREE SHIPPING to Entire Malaysia


💯100% Guarantee Original Garmin💯
2️⃣years Warranty by Garmin Malaysia🇲🇾

⭐️𝐆𝐀𝐑𝐌𝐈𝐍 𝐀𝐮𝐭𝐡𝐨𝐫𝐢𝐳𝐞𝐝 𝐏𝐫𝐞𝐦𝐢𝐮𝐦 𝐑𝐞𝐬𝐞𝐥𝐥𝐞𝐫⭐️𝐬𝐢𝐧𝐜𝐞 𝟐𝟎𝟎𝟖
[𝍖 𝐆𝐚𝐫𝐦𝐢𝐧 𝐑𝐞𝐬𝐞𝐥𝐥𝐞𝐫 @ Plaza Low Yat𝍖]
[𝍖 K-055, Plaza Low Yat UG Floor 𝍖]





Find fishing spot, Catch fish with the Power of Garmin CHIRP

● Multi language support : English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Indonesia Bahasa, Malaysia Bahasa, Vietnamese, Burmese, Thai.

● Available in 6-inch WVGA color, portrait mode display. Offers a keyed interface with dedicated buttons.

● CHIRP sonar sends a continuous sweep of frequencies ranging from low to high. CHIRP sonar is able to create crisper fish arches with better target separation.

● Built-in 600 W (RMS) CHIRP traditional sonar and CHIRP ClearVü scanning sonar gives a clearer picture of what’s below the boat as a photographic image with representation of objects, structure and fish.

● Compatible with GPS, GLONASS and BeiDou powerful positioning systems what quick and easy to drop up to 12,000 accurate waypoints let you find your way back to your secret fishing hot spots.

● Free, easy-to-use Quickdraw Contours software instantly creates personalized HD fishing maps is included.

● GPSMAP 585 Plus supports for typical NMEA0183 and RS422 communication within 3rd party sensors and accessories.

● 2 standard SD™ card slots provides expandable memory for accessory map purchases such as LakeVü HD Ultra maps and BlueChart® g2 Vision® charts.



Spectification

Display resolution, WxH: 480 x 800 pixels
Display type: WVGA display
Weight: 816.0g
Water rating: IPX7
GPS receiver: GPS/GLONASS/BeiDou, internal
NMEA 0183/RS422 compatible: √
Power consumption: 7.6 W
Voltage range: 10V - 36V DC input



Maps & Memory

Preloaded maps: GPSMAP 585 Plus, APAC (worldwide basemap)
Accepts data cards : 2 standard SD
Waypoints: 12,000
Routes: 200
Track log: 50,000 points active track; 100 saved tracks



Chartplotter Features

Garmin Sonar compatible √
Supports AIS (tracks target ships position) √
Supports DSC (displays position data from DSC-capable VHF radio) √
Tide tables √



Sonar Features & Specifications

Transmit power: 600W (RMS)
Sonar Frequency: 50/77/200kHz CHIRP (Low, Mid, High)
ClearVü™: √ (built-in)
Scanning Sonar Frequency: CHIRP 260/455/800kHz
Maximum depth: 2,300 ft, freshwater, 1,100 ft, saltwater (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Split-screen zoom
Fish Symbol ID (helps identify fish targets)
Sonar recording
Sonar history rewind

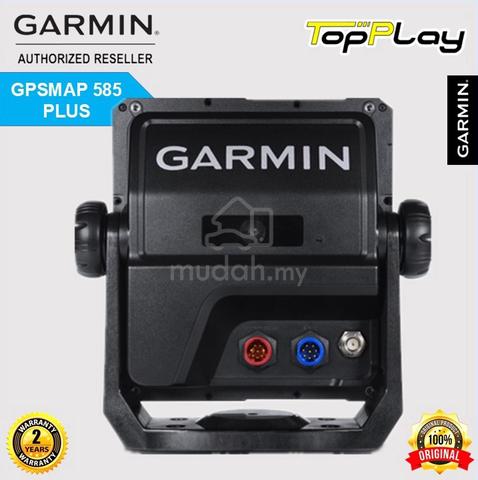

Connections
Transducer Connector Pin Numbers: 8
8-Pin Power/NMEA 0183 Connector: 1
BNC for External GPS Antenna: 1



in the Box=
GPSMAP 585 Plus APAC with worldwide basemap
Power/data cable
Bail mount
Hardware
