TADO YCM3-5(0.75HP) WATER Pump(TSUNAMI) YCM3-5YPC8
List-ID: 9754664108 Apr 09:10
Description
Specification

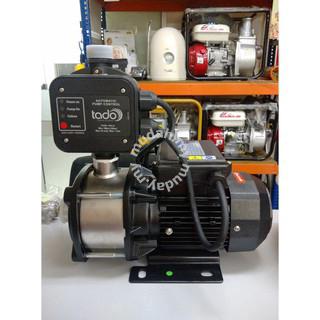

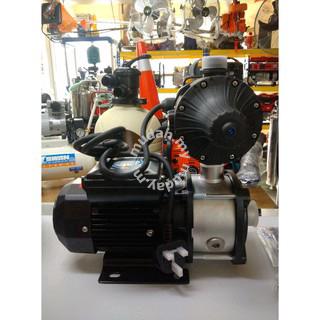

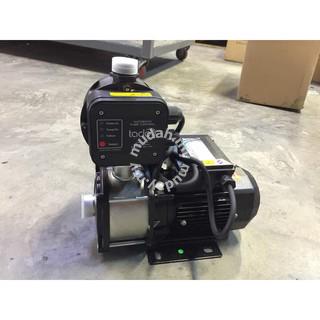

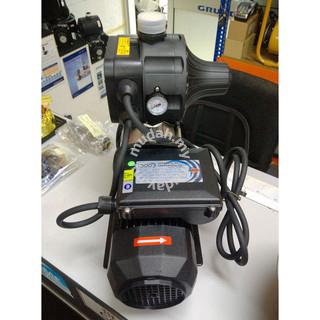

Tado YCM3-5-PC Automatic Horizontal Multi-Stage Centrifugal Pump.. Model YCM3-5/YPC-7
Low Noise Operation with 304 Stainless Steel Shaft`
**Application** .Water treatment (water purification), industrial cleaning machine .Floors of pressurized water supply .High building boosting, water supply, garden sprinkler .Air-conditioning and cooling system .Aquaculture and other uses
**Features** .Horizontal construction, a threaded inlet and outlet for standard installation .With high quality mechanical seal, different friction couples will be selected for different medium .Stainless steel 304 for casing and NORYL for guide blade and impeller .Motor mounted with T1 thermal protector .Insulation class F, protection IP54 .100% copper wired motor
**Specifications** Model YCM3-5/YPC-7 Input voltage 220-240V Frequency 50Hz Phase single Power 0.55kW (0.75HP) Current 3.8A Speed 2900rpm Max. capacity 59L/min Max. head 50mtr Max. pressure 8bar Max. water temperature 60 Celsius Connection inlet / outlet 1" x 1" (25mm x 25mm) Pump body stainless steel Impeller Noryl Mechanical seal stainless steel Heavy duty continuous work Motor housing aluminium Shaft stainless steel (SUS304) Insulation class F Protection IP54 Cooling external ventilation Weight 11kg Warranty 1 years
